17021752202

HRT17021752202
Heilind Number:HRT17021752202
Manufacturer:HARTING
Manufacturer Number:17021752202
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

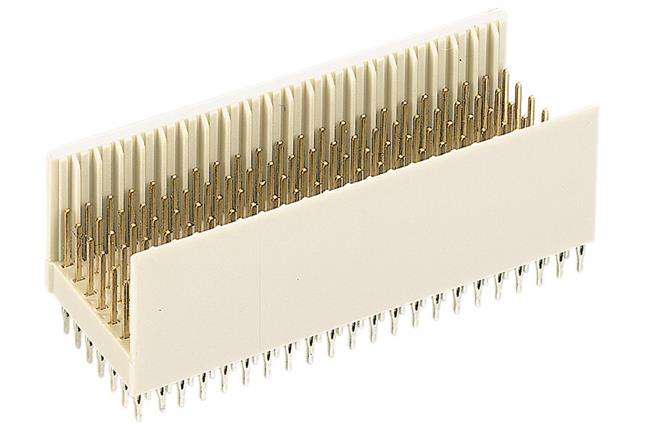

har-bus® HM, Type B25, Connector; Male connector; Thermoplastic resin, glass-fibre filled, Beige; Motherboard to daughtercard; Press-in termination

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:HARTING
Manufacturer Part Number:HARTING 17021752202
Color:Beige
Series:har-bus® HM
Gender:Male
Housing Material:Plastic
Number of Contacts:175
Number of Rows:7
Termination Method:Press-Fit
Contact Material:Copper Alloy
Contact Plating:Nickel, Noble Metal Over Nickel
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Pitch:2 mm
IP Rating:IP20
Mount Angle:Straight
Mating Cycles:500 cycle
Flammability Rating:UL 94V-0
Current Rating:1 A
Voltage Rating:0.75 kV
Part Aliases:
SKU:HRT17021752202

Detailed Description

Introducing the har-bus® HM Type B25 Male Connector, a cutting-edge solution for seamless motherboard to daughtercard connectivity. Crafted with precision from thermoplastic resin and glass-fibre filled materials in a sleek Beige hue, this connector guarantees durability and reliability. Featuring a press-in termination method, installation is quick and effortless. With 175 contacts spread across 7 rows, it ensures optimal data transmission. The copper alloy contacts with nickel plating offer superior conductivity, while the maximum operating temperature of 125°C ensures performance in various environments. With a 2mm pitch and IP20 rating for protection against solids, this connector is ideal for industrial applications. Rest assured of its quality with a UL 94V-0 flammability rating. Upgrade your connectivity with the har-bus® HM Type B25 Male Connector.
