| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17030552401 |
| Color: | Beige |
| Series: | har-bus® HM |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 55 |
| Number of Rows: | 7 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Straight |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17030552401 |
17030552401
Specifications
Detailed Description

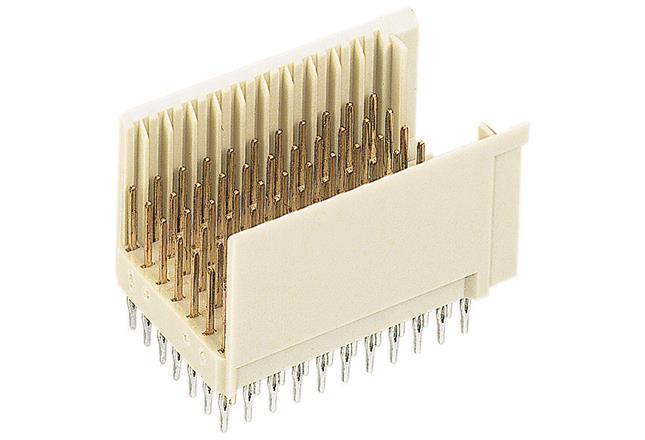

The har-bus® HM Type C Connector is a reliable solution for connecting motherboards to daughter cards. Featuring a male gender and made of durable thermoplastic resin with glass-fibre filling in a sleek Beige color, this connector ensures secure and stable performance. With 55 contacts arranged in 7 rows and a pitch of 2mm, it offers efficient connectivity. The press-in termination method allows for easy installation. Constructed with high-quality materials including copper alloy contacts with nickel plating, it guarantees excellent conductivity. With a wide operating temperature range of -55°C to 125°C, it is suitable for various environments. This connector, with a current rating of 1A and voltage rating of 0.75kV, is ideal for board-to-board PCB applications. Meeting UL 94V-0 flammability standards, it ensures safety. Upgrade your connectivity with the har-bus® HM Type C Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
