| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17041101201 |
| Color: | Beige |
| Series: | har-bus® HM |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 110 |
| Number of Rows: | 7 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Straight |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17041101201 |
17041101201
Specifications
Detailed Description

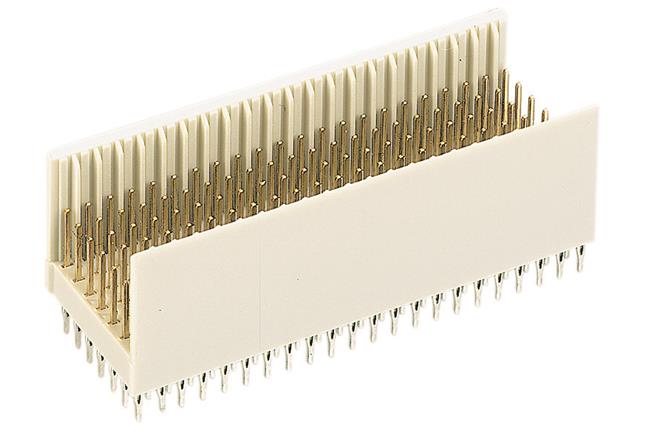

The har-bus® HM Type B22 Connector is a reliable and high-performance solution for connecting a motherboard to a daughtercard. Featuring a male connector with 110 contacts arranged in 7 rows, it ensures secure and efficient data transmission. The thermoplastic resin housing, reinforced with glass fibers, provides durability and stability in operation. With a press-in termination method, installation is quick and easy. The beige color and straight mount angle make it versatile for various applications. This connector is designed for a maximum operating temperature of 125°C and meets UL 94V-0 flammability rating standards. With a current rating of 1A and voltage rating of 0.75kV, it guarantees reliable performance. Trust the har-bus® HM Connector for seamless connectivity in your electronic systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
