| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17050951201 |
| Color: | Beige |
| Series: | har-bus® HM |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 95 |
| Number of Rows: | 7 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Straight |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17050951201 |
17050951201
Specifications
Detailed Description

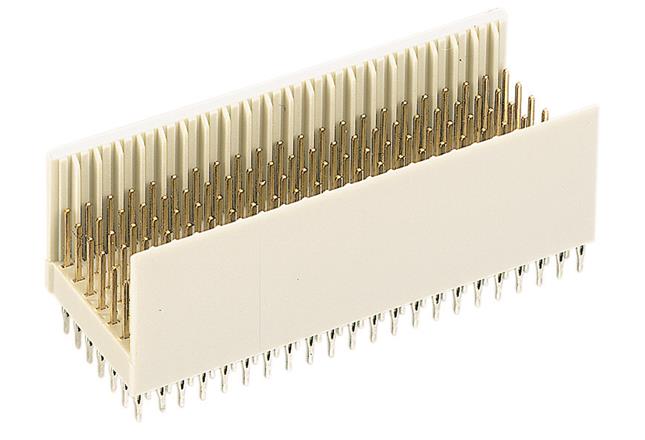

Introducing the har-bus® HM Type AB19 Connector, designed for reliable motherboard to daughtercard connectivity. This Male connector features a robust construction of Thermoplastic resin with glass-fibre filling in a sleek Beige hue. With 95 contacts arranged in 7 rows, it ensures efficient data transmission. The Press-Fit termination method guarantees a secure and stable connection. Crafted with Copper Alloy contacts plated with Nickel and Noble Metal, it offers excellent conductivity and durability. Operating temperature ranging from -55°C to 125°C, it is suitable for diverse environments. With a pitch of 2mm and straight mount angle, it is easy to install on PCBs. UL 94V-0 rated for flame resistance, it ensures safety. Ideal for high-speed data transfer applications, this connector is a reliable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
