| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17051332203 |
| Color: | Beige |
| Series: | har-bus® HM |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 133 |
| Number of Rows: | 7 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Straight |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17051332203 |
17051332203
Specifications
Detailed Description

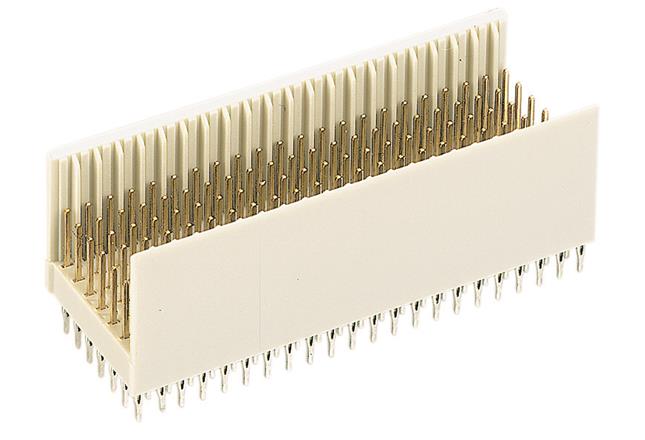

The har-bus® HM Type AB19 Connector is a reliable and high-performance solution for connecting motherboards to daughtercards. Featuring a male connector with press-in termination, this beige-colored connector is made from durable thermoplastic resin and glass-fibre filled material. With 133 contacts organized in 7 rows, it offers efficient signal transmission. The housing material is glass-filled plastic, ensuring robustness. Contacts are made of copper alloy with nickel and noble metal plating, guaranteeing excellent conductivity. Operating at temperatures ranging from -55°C to 125°C, it is suitable for a wide range of environments. With a pitch of 2mm, straight mount angle, and UL 94V-0 flammability rating, it meets stringent industry standards. RoHS compliant and rated for 0.75kV, it is a safe and environmentally friendly choice for board-to-board PCB connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
