| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17063081201 |
| Color: | Beige |
| Pitch: | 2 mm |
| Gender: | Male |
| Series: | har-bus® HM |
| Mount Angle: | Straight |
| Current Rating: | 1 A |
| Number of Rows: | 7 |
| Voltage Rating: | 0.75 kV |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 308 |
| Termination Method: | Press-Fit |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT17063081201 |
17063081201
Specifications
Detailed Description

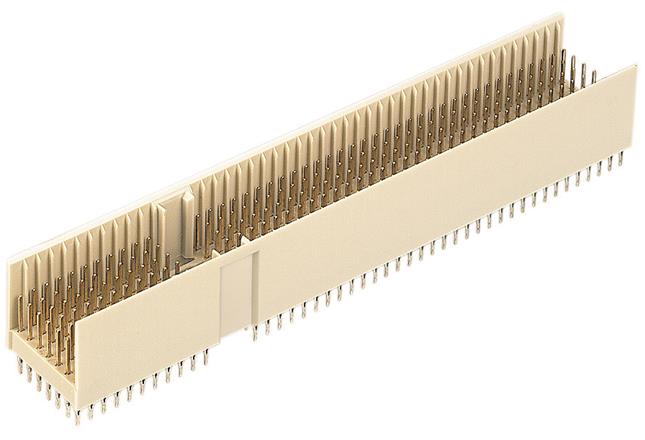

Introducing the har-bus® HM Monoblock 47 Connector, a high-performance solution for connecting motherboards to daughtercards. This male connector features a durable thermoplastic resin housing with glass-fibre filling in an elegant Beige finish. With a total of 308 contacts arranged in 7 rows, it ensures reliable connectivity in complex board-to-board applications. The Press-Fit termination method guarantees secure attachment, while the Copper Alloy contacts with Nickel and Noble Metal plating offer excellent conductivity and corrosion resistance. Operating flawlessly in temperatures ranging from -55°C to 125°C, this connector is ideal for demanding environments. With a pitch of 2mm and straight mount angle, it facilitates easy installation. RoHS compliant and boasting a voltage rating of 0.75kV, the har-bus® HM Monoblock 47 Connector is the perfect choice for your PCB connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
