| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17063082005 |
| Color: | Beige |
| Series: | har-bus® HM |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 308 |
| Number of Rows: | 7 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Straight |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17063082005 |
17063082005
Specifications
Detailed Description

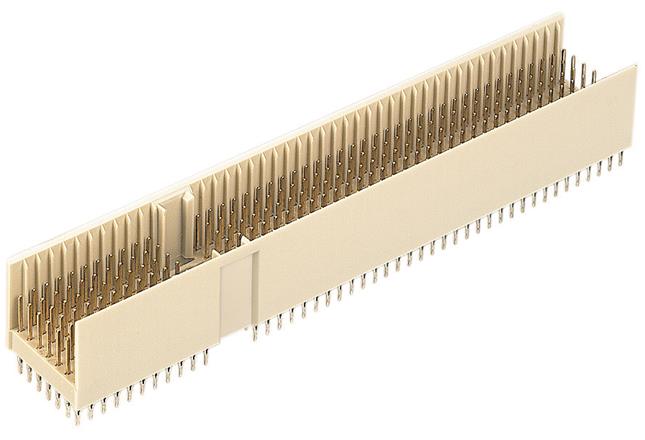

The har-bus® HM Type Monoblock 47 Connector, SKU 17063082005, is a Male connector designed for high-speed data transmission in electronic devices. Made of durable Thermoplastic resin with glass-fibre filling, this Beige connector ensures reliable performance. With 308 contacts arranged in 7 rows, it facilitates efficient motherboard to daughtercard connectivity. Featuring Press-Fit termination and Copper Alloy contacts with Nickel plating, it offers secure and stable connections. With a pitch of 2mm and a straight mount angle, it is suitable for various PCB applications. Operating in temperatures ranging from -55°C to 125°C, it is reliable in harsh environments. Its UL 94V-0 flammability rating guarantees safety. Ideal for board-to-board and mezzanine stacking applications, this connector is a versatile and essential component for electronic assemblies.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
