| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17112202201 |
| Color: | Beige |
| Series: | har-bus® HM |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 220 |
| Number of Rows: | 10 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Straight |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17112202201 |
17112202201
Specifications
Detailed Description

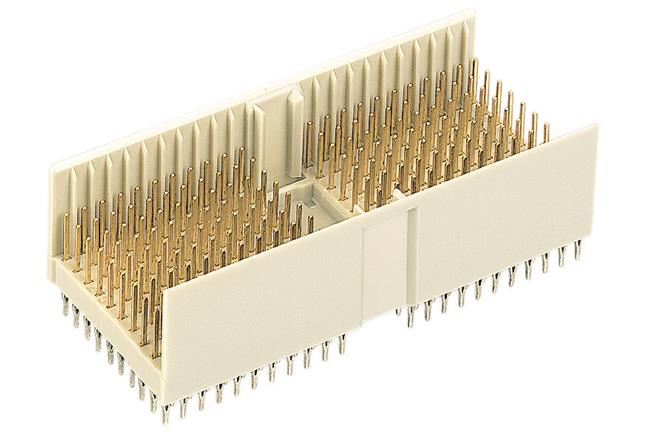

Introducing the har-bus® HM Type D Connector, designed for seamless connectivity in demanding electronic applications. This Male connector features a robust construction with Thermoplastic resin and glass-fibre filling in a sleek Beige housing. Perfect for linking motherboards to daughtercards, it boasts Press-in termination for secure attachment. With 220 contacts spread across 10 rows, this connector ensures efficient data transmission. The high-quality Copper Alloy contacts are plated with Nickel and Noble Metal, guaranteeing reliable performance. Operating in temperatures ranging from -55°C to 125°C, it offers versatility in various environments. With a 2mm pitch and Straight mount angle, it facilitates easy installation. UL 94V-0 rated for flammability, it meets stringent safety standards. Rated for 1A current and 0.75kV voltage, it's ideal for Board to Board PCB connections. Trust in the har-bus® HM for premium quality and durability in your electronic setups.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
