| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17122502201 |
| Color: | Beige |
| Series: | har-bus® HM |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 250 |
| Number of Rows: | 10 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Straight |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17122502201 |
17122502201
Specifications
Detailed Description

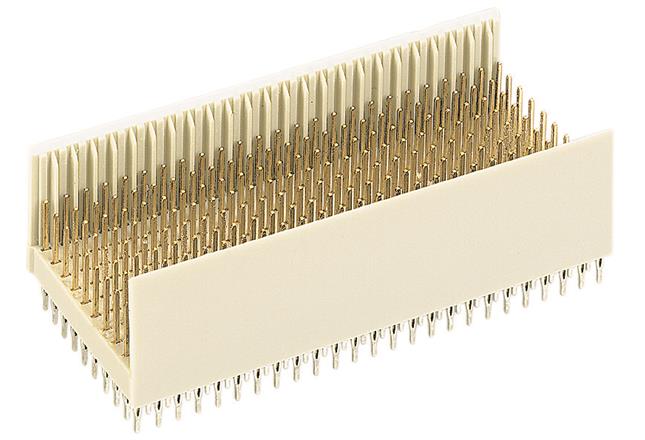

The har-bus® HM Type E Connector is a versatile and reliable solution for Motherboard to daughtercard connections. With a male gender and Beige housing made of durable glass-filled plastic, this connector ensures secure and efficient performance. Featuring 250 contacts in 10 rows, it offers ample connectivity for your PCB needs. The Press-Fit termination method guarantees a strong and stable connection, while the Copper Alloy contacts with Nickel plating ensure excellent conductivity. With a wide operating temperature range from -55°C to 125°C, this connector is suitable for various environments. Its 2mm pitch and straight mount angle make installation easy. UL 94V-0 rated for flammability, it meets safety standards. Perfect for high-speed data and power transmission, the har-bus® HM Type E Connector is a top choice for demanding applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
