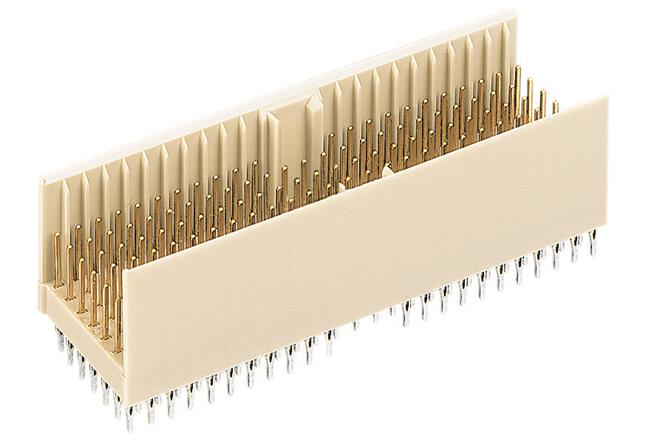

17131271202

HRT17131271202
Heilind Number:HRT17131271202
Manufacturer:HARTING
Manufacturer Number:17131271202
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

har-bus® HM, Type AB19, Connector; Male connector; Thermoplastic resin, glass-fibre filled, Beige; Motherboard to daughtercard; Press-in termination

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:HARTING
Manufacturer Part Number:HARTING 17131271202
Color:Beige
Series:har-bus® HM
Gender:Male
Housing Material:Glass-Filled Plastic
Number of Contacts:127
Number of Rows:7
Termination Method:Press-Fit
Contact Material:Copper Alloy
Contact Plating:Nickel, Noble Metal Over Nickel
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Pitch:2 mm
Mount Angle:Straight
Flammability Rating:UL 94V-0
Current Rating:1 A
Voltage Rating:0.75 kV
Part Aliases:
SKU:HRT17131271202

Detailed Description

The har-bus® HM Type AB19 Connector is a male connector designed for reliable motherboard to daughtercard connections. With a durable thermoplastic resin housing that is glass-fibre filled, this connector ensures robust performance. Its beige color and press-in termination method make it easy to install and maintain. Featuring 127 contacts in 7 rows, it provides ample connectivity options. Constructed with copper alloy contacts plated with nickel and a noble metal overlay, it guarantees optimal signal transmission. With a wide operating temperature range of -55°C to 125°C, it is suitable for diverse environments. This straight mount connector has a 2mm pitch and meets UL 94V-0 flammability rating standards. With a current rating of 1A and voltage rating of 0.75kV, it is ideal for high-speed data transfer applications. A reliable choice for board-to-board PCB connections, the har-bus® HM Type AB19 Connector sets the standard for performance and durability.
