| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17151691003 |
| Pitch: | 2 mm |
| Gender: | Male |
| Series: | har-bus® HM |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 1 A |
| Number of Rows: | 7 |
| Voltage Rating: | 0.75 kV |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Housing Material: | Plastic |
| Performance Level: | Class I |
| Number of Contacts: | 169 |
| Termination Method: | Press-Fit |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT17151691003 |
17151691003
Specifications
Detailed Description

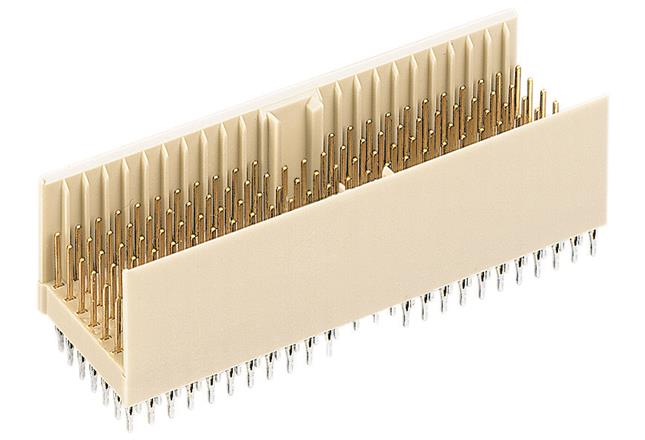

Introducing the HAR-BUS HM Male Connector, SKU 17151691003. This high-performance connector is designed for demanding applications, with a housing made of durable plastic and featuring 169 contacts in 7 rows. The Press-Fit termination method ensures secure and reliable connections, while the contact plating of Nickel and Noble Metal Over Nickel offers excellent conductivity. Operating temperature ranges from -55°C to 125°C, making it suitable for a wide range of environments. With a pitch of 2mm and straight mount angle, it's easy to integrate into your system. Rated for 1A current and 0.75kV voltage, this connector meets Class I performance standards and is RoHS compliant. Perfect for use in Backplane Connectors, Board To Board PCB Connectors, and other high-reliability applications. Upgrade your connectivity with the HAR-BUS HM Male Connector.
