| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17151691201 |
| Color: | Beige |
| Series: | har-bus® HM |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 169 |
| Number of Rows: | 7 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Straight |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17151691201 |
17151691201
Specifications
Detailed Description

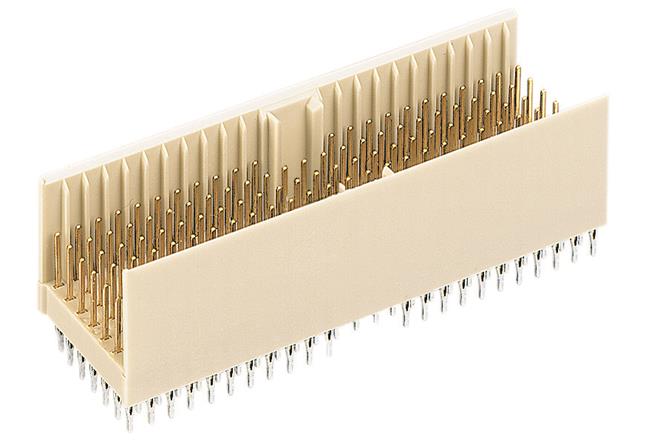

Introducing the har-bus® HM Type AB25 Male Connector, a high-performance solution for connecting motherboards to daughtercards with ease. This Beige connector features a durable thermoplastic resin housing with glass-fibre filling, ensuring reliable performance in any environment. With 169 contacts arranged in 7 rows, it offers ample connectivity options. The Press-Fit termination method allows for secure and efficient installation. Made of copper alloy with nickel plating, it guarantees excellent conductivity. Operating temperature ranging from -55°C to 125°C, along with UL 94V-0 flammability rating, ensures safety and durability. With a pitch of 2mm and straight mount angle, it's perfect for board-to-board applications. RoHS compliant and rated for 0.75kV, this connector is ideal for demanding industrial and electronic projects. Elevate your connectivity with the har-bus® HM Type AB25 Male Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
