| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17151692003 |
| Pitch: | 2 mm |
| Gender: | Male |
| Series: | har-bus® HM |
| Mount Angle: | Straight |
| Mating Cycles: | 250 cycle |
| Current Rating: | 1 A |
| Number of Rows: | 7 |
| Voltage Rating: | 0.75 kV |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Housing Material: | Plastic |
| Performance Level: | Class II |
| Number of Contacts: | 169 |
| Termination Method: | Press-Fit |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT17151692003 |
17151692003
Specifications
Detailed Description

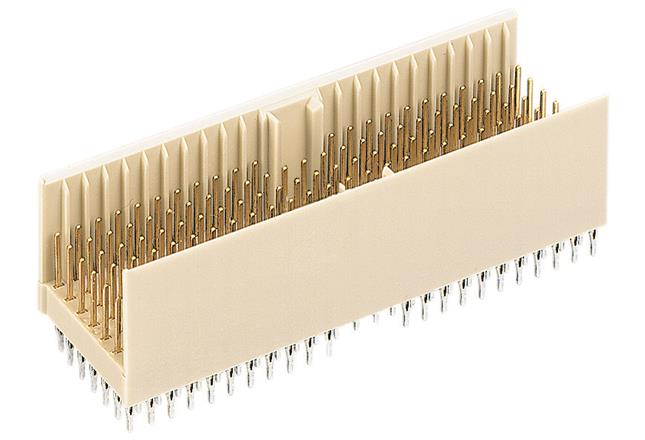

Introducing the HAR-BUS HM Male Connector, a high-performance solution for your electronic connections. This Type AB AFS 2 connector, part of the har-bus® HM series, features a durable plastic housing and a total of 169 contacts arranged in 7 rows. With a press-fit termination method and nickel plating with Noble Metal Over Nickel, it ensures secure and reliable connectivity even in demanding environments. Operating within a wide temperature range from -55°C to 125°C, it is suitable for various applications. With a pitch of 2mm and straight mount angle, it offers easy installation on PCBs. Rated for 1A current and 0.75kV voltage, it meets RoHS compliance standards. Ideal for backplane and board-to-board connections, this connector guarantees Class II performance with a durability of 250 mating cycles. Upgrade your connectivity with the 17151692003.
