| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17221251101 |
| Color: | Beige |
| Series: | har-bus® HM |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 125 |
| Number of Rows: | 7 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Right Angle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17221251101 |
17221251101
Specifications
Detailed Description

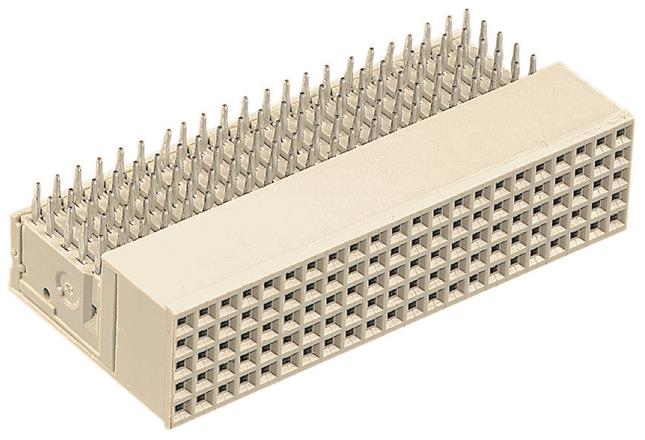

The har-bus® HM Type B25 Connector is a high-performance female connector designed for seamless motherboard to daughtercard connections. Crafted from thermoplastic resin with glass-fibre reinforcement, this beige connector ensures durability and reliability in demanding environments. Featuring press-in termination for quick and secure installation, it offers 125 contacts in 7 rows with a 2mm pitch. The copper alloy contacts with nickel plating guarantee efficient signal transmission, while the UL 94V-0 flammability rating ensures safety. With a wide operating temperature range from -55°C to 125°C and a current rating of 1A, this RoHS-compliant connector is suitable for various applications. Trust the har-bus® HM Type B25 Connector for robust and efficient board-to-board connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
