| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17221252102 |
| Color: | Beige |
| Series: | har-bus® HM |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 125 |
| Number of Rows: | 7 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Right Angle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17221252102 |
17221252102
Specifications
Detailed Description

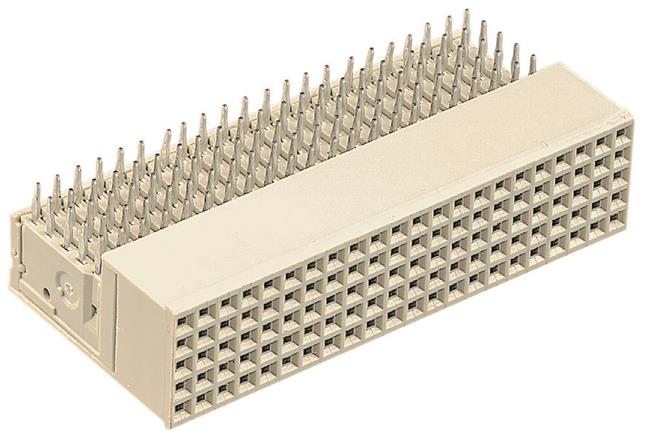

Introducing the har-bus® HM Type B25 Connector, a versatile solution for seamless motherboard to daughtercard connectivity. This Female connector boasts a durable construction, with Thermoplastic resin and glass-fibre filling in a sleek Beige hue. Featuring 125 contacts arranged in 7 rows, it ensures efficient data transfer with a pitch of 2mm. The Press-in termination method guarantees a secure connection, while the contact material of Copper Alloy with Nickel plating offers optimal conductivity. With a wide operating temperature range from -55°C to 125°C and a voltage rating of 0.75kV, this connector is suitable for various applications. Its UL 94V-0 flammability rating ensures safety, making it ideal for high-performance systems. Upgrade your connectivity with the har-bus® HM Type B25 Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
