| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17241102101 |
| Color: | Beige |
| Pitch: | 2 mm |
| Gender: | Female |
| Series: | har-bus® HM |
| Mount Angle: | Right Angle |
| Current Rating: | 1 A |
| Number of Rows: | 7 |
| Voltage Rating: | 0.75 kV |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 110 |
| Termination Method: | Press-Fit |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT17241102101 |
17241102101
Specifications
Detailed Description

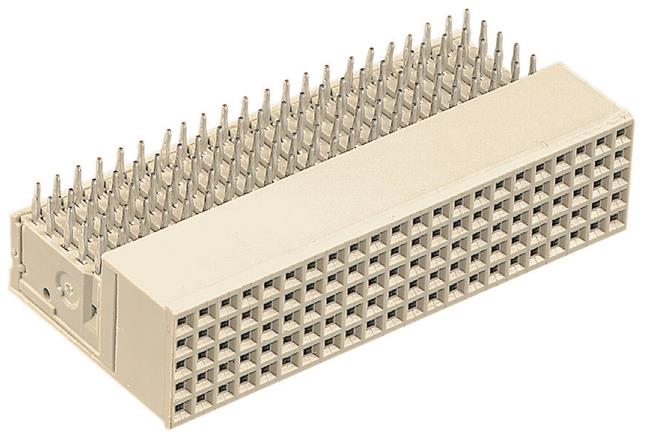

The har-bus® HM Type B22 Connector in Beige is a versatile and reliable solution for connecting motherboards to daughtercards. Featuring a Female connector with Press-in termination, this connector ensures secure and efficient connectivity. With a housing material of Glass-Filled Plastic and contact material of Copper Alloy with Nickel plating, it offers durability and excellent conductivity. With a high current rating of 1A and a voltage rating of 0.75kV, it is suitable for a wide range of applications. RoHS compliant and UL 94V-0 rated for flammability, it meets stringent quality standards. With 110 contacts arranged in 7 rows and a 2mm pitch, it provides ample connectivity options. Operating in a temperature range of -55°C to 125°C, it is suitable for use in various environments. A part of the har-bus® HM series, it guarantees compatibility and reliability.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
