| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17262202101 |
| Series: | har-bus® HM |
| Gender: | Female |
| Housing Material: | Plastic |
| Number of Contacts: | 220 |
| Number of Rows: | 7 |
| Termination Method: | Press-Fit |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Right Angle |
| Mating Cycles: | 250 cycle |
| Performance Level: | Class II |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17262202101 |
17262202101
Specifications
Detailed Description

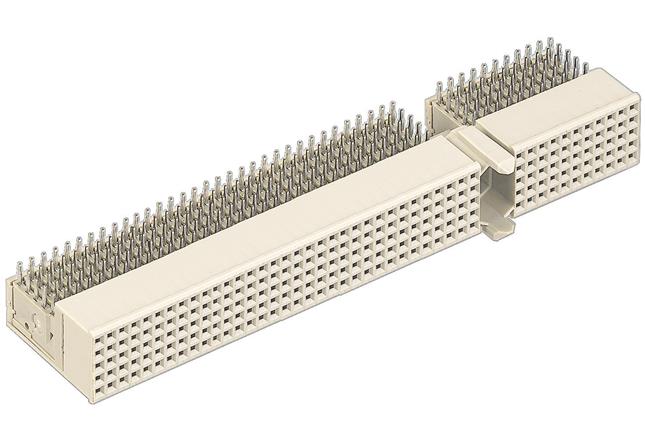

Introducing the HAR-BUS HM FEDERL. TYP MONOBL. ( 17262202101), a high-performance backplane connector designed for demanding applications. With 220 contacts arranged in 7 rows, this connector offers robust connectivity in a compact form factor, ideal for board-to-board PCB connections. Featuring a press-fit termination method and nickel plating with a noble metal overlay, it ensures reliable signal transmission even in harsh environments. Operating between -55°C and 125°C, it meets Class II performance standards with a current rating of 1A and voltage rating of 0.75kV. With a pitch of 2mm and right-angle mount angle, it allows for efficient PCB layout and assembly. Trust in the quality and durability of the har-bus® HM series for your critical electronic systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
