| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17330951102 |
| Color: | Beige |
| Series: | har-bus® HM |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 95 |
| Number of Rows: | 7 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Right Angle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17330951102 |
17330951102
Specifications
Detailed Description

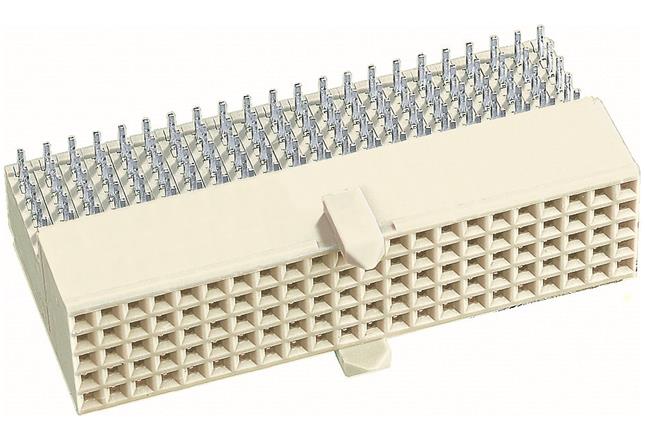

The har-bus® HM Type AB19 Connector is a versatile and reliable solution for connecting motherboards to daughter cards. Featuring a female design and made of high-quality thermoplastic resin with glass-fibre filling, this connector ensures durable and secure connections. With a pitch of 2mm and 7 rows of 95 contacts, it offers ample connectivity options. The press-in termination method guarantees easy installation. Its beige housing, along with UL 94V-0 flammability rating, enhances safety. With a wide operating temperature range from -55°C to 125°C, it is suitable for various environments. The copper alloy contacts with nickel plating ensure excellent conductivity. Ideal for board-to-board and PCB applications, the har-bus® HM Connector is a must-have for any electronic setup.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
