| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17341101101 |
| Color: | Beige |
| Series: | har-bus® HM |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 110 |
| Number of Rows: | 7 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Right Angle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17341101101 |
17341101101
Specifications
Detailed Description

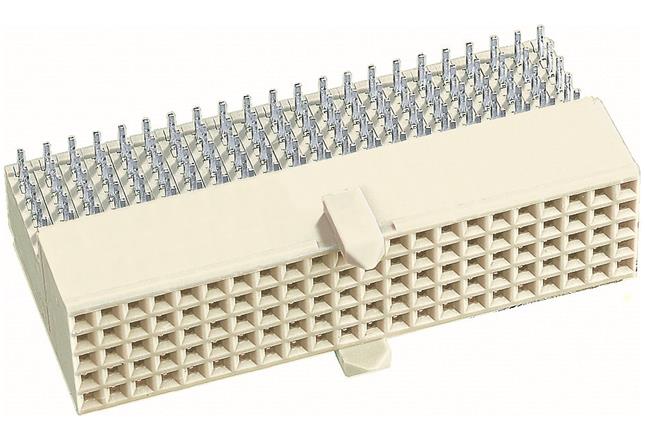

Introducing the har-bus® HM Type AB22 Connector, designed for seamless board-to-board connectivity in electronic systems. This Female Connector boasts a durable construction of thermoplastic resin with glass-fiber reinforcement, ensuring reliable performance in demanding environments. With a beige housing and press-in termination method, it offers easy installation for Motherboard to Daughter card connections. Featuring 110 contacts in 7 rows, and a pitch of 2mm, it enables high-density and efficient data transfer. The connector is engineered for durability, with a maximum operating temperature of 125°C and flammability rating of UL 94V-0. With a current rating of 1A and voltage rating of 0.75kV, it meets stringent industry standards for performance and safety. Upgrade your connectivity solutions with the har-bus® HM Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
