| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17341101102 |
| Color: | Beige |
| Pitch: | 2 mm |
| Gender: | Female |
| Series: | har-bus® HM |
| Mount Angle: | Right Angle |
| Current Rating: | 1 A |
| Number of Rows: | 7 |
| Voltage Rating: | 0.75 kV |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 110 |
| Termination Method: | Press-Fit |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT17341101102 |
17341101102
Specifications
Detailed Description

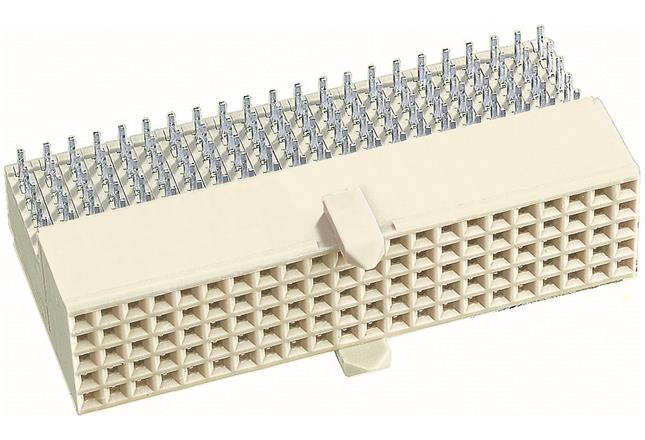

The har-bus® HM Type AB22 Connector is a reliable and versatile solution for connecting motherboards to daughtercards. Featuring a female connector with press-in termination, this component ensures a secure and durable connection. Made from thermoplastic resin with glass-fibre filling, it offers excellent mechanical strength and resistance to impact. The beige housing adds a sleek and professional look to your electronic assemblies. With 110 contacts arranged in 7 rows and a 2mm pitch, this connector is suitable for high-density PCB applications. Its copper alloy contacts with nickel plating guarantee efficient signal transmission, while the UL 94V-0 flammability rating ensures safety. Operating temperature range from -55°C to 125°C, current rating of 1A, and voltage rating of 0.75kV make it suitable for a wide range of environments. Perfect for use in board-to-board connections, the har-bus® HM Type AB22 Connector is a dependable choice for your electronic projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
