| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17610042101 |
| Color: | Black |
| Series: | har-bus® HM |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 4 |
| Number of Rows: | 1 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 3 mm |
| Mount Angle: | Right Angle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 23 A |
| Voltage Rating: | 1.5 kV |
| SKU: | HRT17610042101 |
17610042101
Specifications
Detailed Description

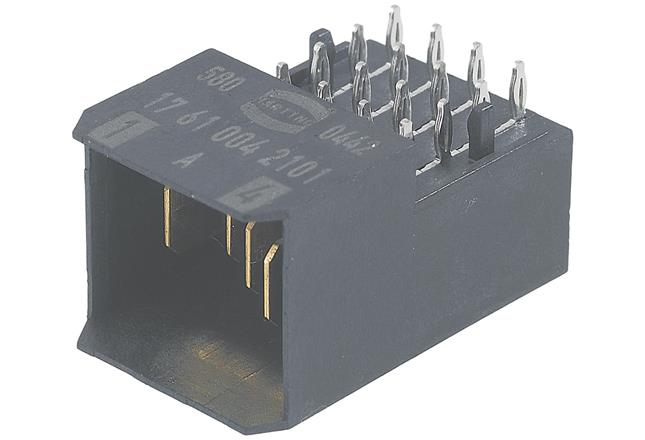

The har-bus® HM Power Connector is a durable and reliable solution for connecting motherboards to daughtercards. Featuring a male connector with press-in termination, this connector ensures secure and efficient power transmission. Constructed with high-quality thermoplastic resin and glass-fibre filled material in a sleek black color, it offers both strength and aesthetic appeal. With a pitch of 3mm and a right-angle mount angle, it is suitable for various PCB applications. With a maximum operating temperature of 125°C and a current rating of 23A, this connector is designed to perform in demanding environments. Its UL 94V-0 flammability rating guarantees safety and compliance. Trust the har-bus® HM Power Connector for seamless power connectivity in your electronic systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
