| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17610042103 |
| Color: | Black |
| Series: | har-bus® HM |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 4 |
| Number of Rows: | 1 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 3 mm |
| Mount Angle: | Right Angle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 20 A |
| Voltage Rating: | 1.5 kV |
| SKU: | HRT17610042103 |
17610042103
Specifications
Detailed Description

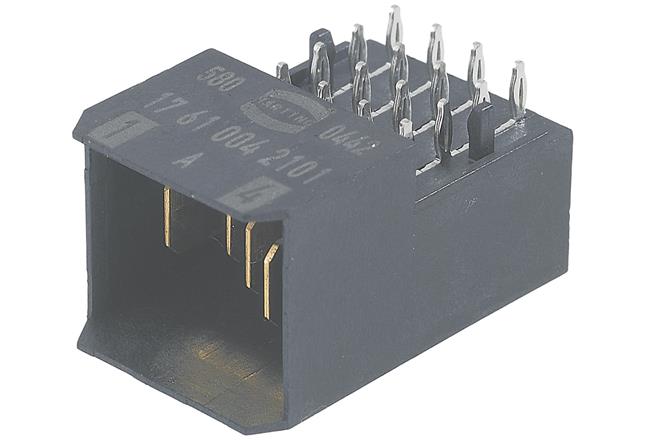

The har-bus® HM Power Connector ( 17610042103) is a reliable and efficient solution for connecting motherboards to daughtercards. This male connector features a durable housing made of thermoplastic resin with glass-fibre filling, ensuring strength and longevity. Its press-in termination method allows for secure and easy installation. With four contacts in a single row, it provides a streamlined connection. The contact material is copper alloy with nickel plating, including a noble metal overlay for enhanced conductivity. Operating temperature ranges from -55°C to 125°C, making it suitable for various environments. With a current rating of 20A and voltage rating of 1.5kV, it offers high performance in power applications. The black housing color and right-angle mount angle add versatility to its design. UL 94V-0 flammability rating ensures safety compliance. This connector is part of the har-bus® HM series, known for its quality and reliability. Perfect for use in board-to-board PCB connections, it's a crucial component in electronic systems.
