| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17660042201 |
| Color: | Beige |
| Pitch: | 3 mm |
| Gender: | Female |
| Series: | har-bus® HM |
| Mount Angle: | Straight |
| Current Rating: | 20 A |
| Number of Rows: | 1 |
| Voltage Rating: | 1.5 kV |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 4 |
| Termination Method: | Press-Fit |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT17660042201 |
17660042201
Specifications
Detailed Description

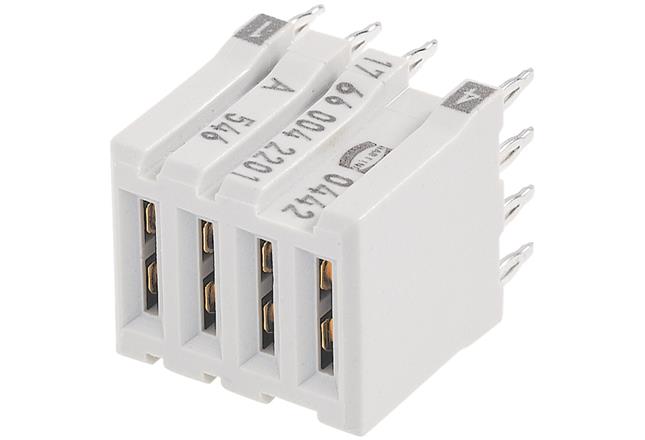

The har-bus® HM Power Connector is a vital component for seamless motherboard to daughtercard connections. Featuring a female connector with four contacts in a single row, this beige connector is made from durable thermoplastic resin, reinforced with glass fibers for added strength. With a press-in termination method, installation is quick and secure. The contact material is copper alloy with nickel plating, ensuring reliable conductivity. Operating temperatures ranging from -55°C to 125°C, and a voltage rating of 1.5 kV make it suitable for a wide range of applications. With a current rating of 20 A and UL 94V-0 flammability rating, it guarantees safety and performance. RoHS compliant and part of the har-bus® HM series, this connector is a dependable choice for board to board PCB connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
