| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 172704-0119 |
| Series: | 172704 |
| Thread Size: | 4-40 |
| Shield Type: | Shielded Plastic |
| Orientation: | Straight or 90° Angle |
| Thread Type: | Standard |
| Cable Diameter: | 11.2 mm |
| Operating Temperature Range: | -35 - 95 °C |
| Shielded: | Yes |
| Mounting Hardware Type: | Locking Screw |
| Waterproof Dustproof: | No |
| Screw Material: | Steel |
| Backshell Material: | PC+ABS |
| Backshell Plating: | Nickel |
| Product Name: | FCT Products |
| Part Aliases: | 1727040119 FPHGR-3AE |
| SKU: | MOL172704-0119 |
172704-0119
| Heilind Number: | MOL172704-0119 |
| Manufacturer: | Molex |
| Manufacturer Number: | 172704-0119 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Description:

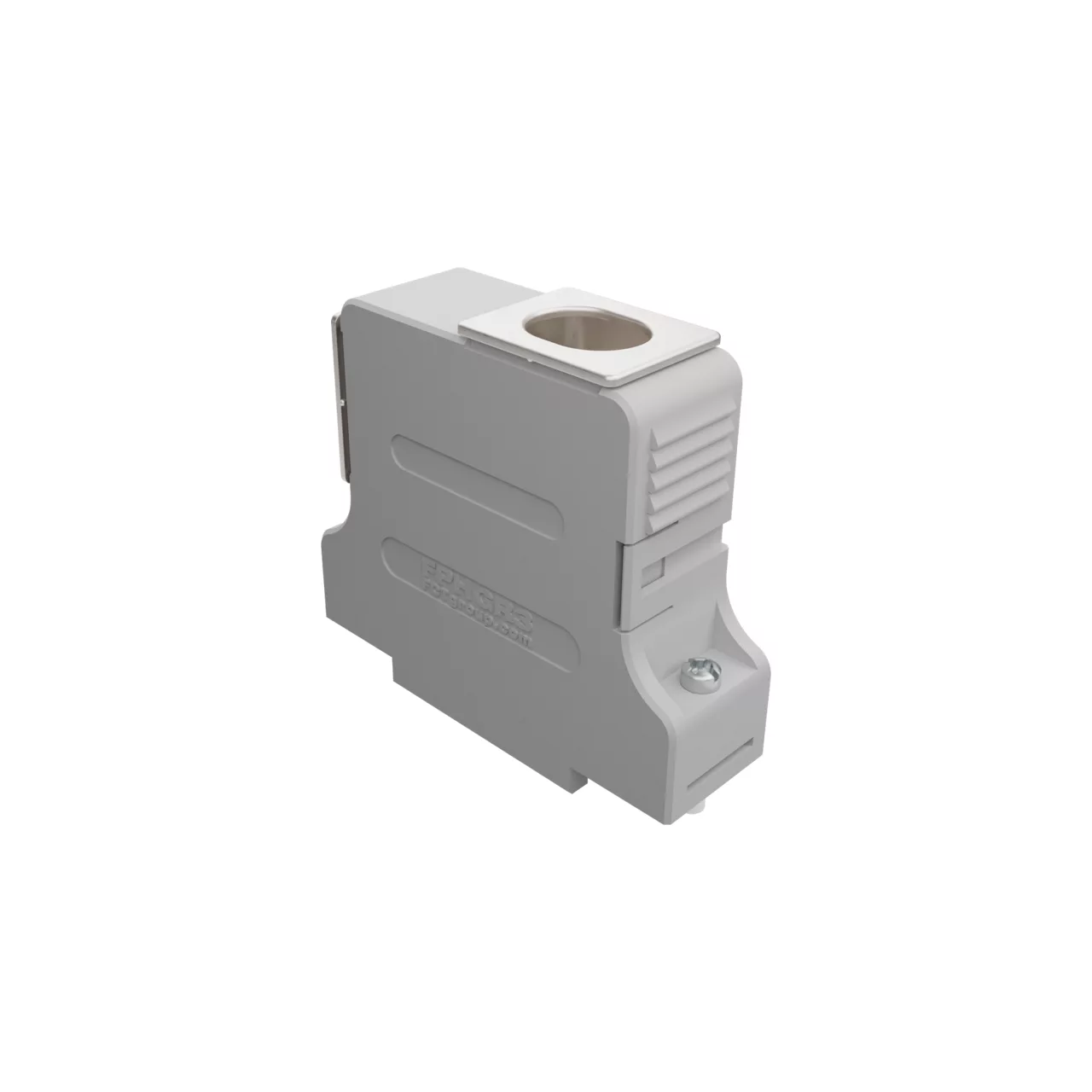

FCT Plastic Backshell for D-Sub Connector, Shielded, Shell Size 3, Straight or 90° Angle Cable Outlet, Flat Body, with Grip Cover, Contact Spring, and #4-40 Locking Screws
More >>Specifications
Detailed Description
Enhance the connectivity of your D-Sub Connector with this FCT Plastic Backshell. Designed for Shielded applications, it fits Shell Size 3 connectors with a choice of Straight or 90° Angle Cable Outlet for flexible installation. Featuring a durable PC+ABS construction with Nickel plating, it ensures reliable performance in diverse environments. The Flat Body design, along with Locking Screws, provides secure cable management. With a thread size of 4-40 and a shielded Shielded Plastic construction, this backshell guarantees optimal signal integrity. Operating efficiently in temperatures ranging from -35 to 95°C, it is a dependable solution for various industrial settings. RoHS compliant and meticulously engineered, it's part of the high-quality FCT Products lineup.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 01/01/2025 | 515786 - Change to Product. This notification is to inform you about changes that are being made to the part(s) as identified in the list. This change will not affect the Fit, Form, Function, or appearance of the parts. It will only result in a change to raw material. | Download | |||
| 04/20/2018 | 505131 - Supplier Change. This letter is to inform you that Molex is adding a new supplier or the supplier is making a change affecting the part(s) identified in this notice. There will be no negative impact to product performance as a result of this change. | Download | |||
| 02/15/2016 | FCT20160215 - FCT To Molex Part Numbers. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 172704-0119 |
| Other Names: | 1727040119 FPHGR-3AE |
