173109-0121

MOL173109-0121
Heilind Number:MOL173109-0121
Manufacturer:Molex
Manufacturer Number:173109-0121
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

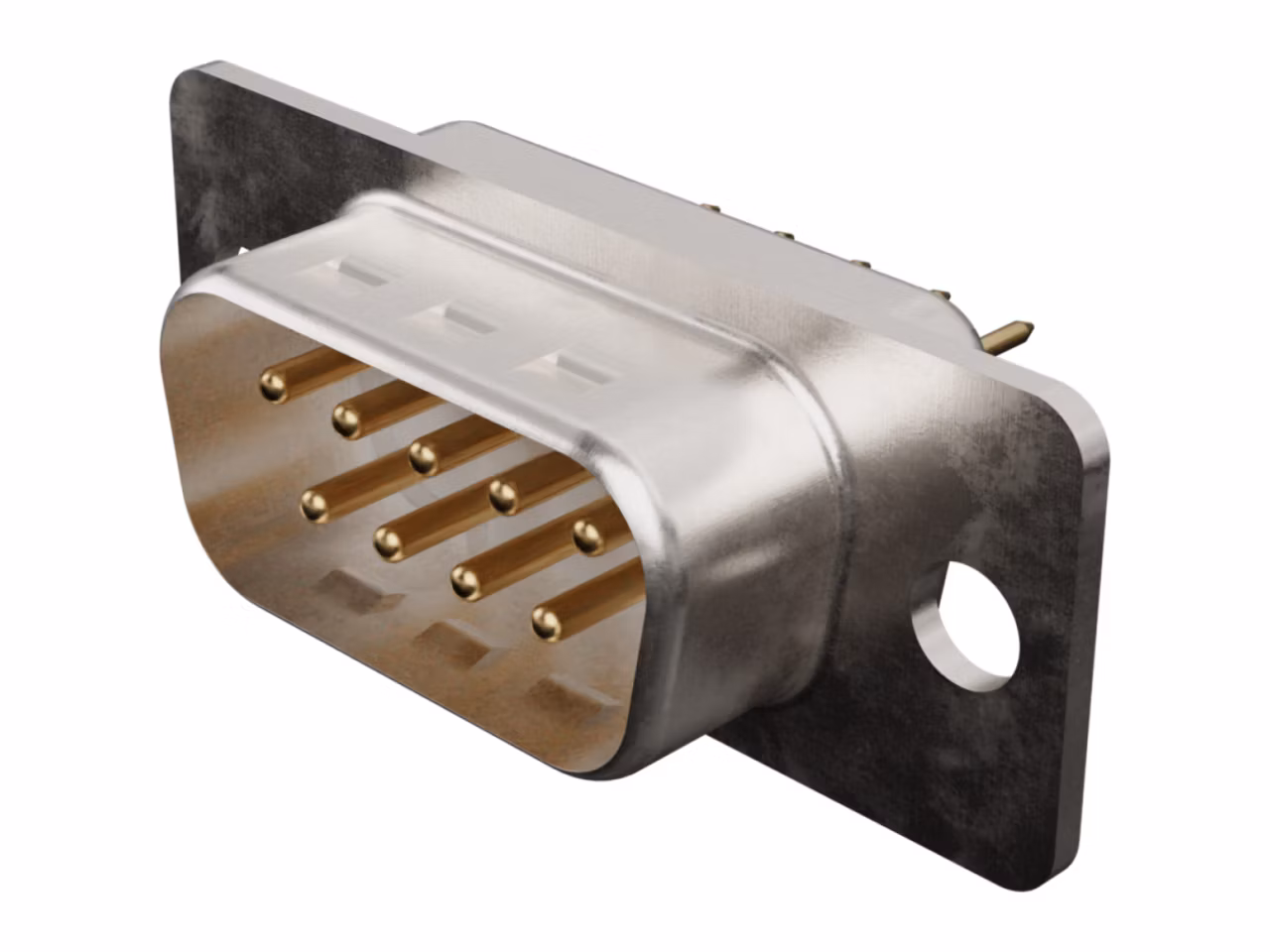

FCT Standard-Density D-Sub Connector, Male, Straight, PCB Through Hole, 10.3mm Tail Length, Gold Plating, 200 Mating Cycles, 9 Circuits, White Insulator

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:Molex
Manufacturer Part Number:Molex 173109-0121
Color:White
Series:173109
Amperage:7.5 A
Gender:Male
Number of Contacts:9
Number of Rows:2
Termination Method:Through Hole
Contact Material:Copper Alloy
Contact Plating:Gold Over Nickel
Pitch:2.84 mm
IP Rating:IP20
Shell Plating:Tin
Number of Ports:1
Orientation:Straight
Insert Material:PBT
Shell Material:Steel
Tail Length:10.3 mm
Operating Temperature Range:-55 - 125 °C
Number of Contacts Loaded:9
Mating Cycles:200
Panel Mount:Rear
Panel Mount Method:Flange
PCB Locator:Yes
Shielded:Yes
PCB Retention:Yes
Polarized to PCB:Yes
Type:Standard Density
Mating Pitch:2.84 mm
Polarized to Mate:Yes
PCB Thickness (Recommended):1.6 mm
Waterproof Dustproof:No
Product Name:FCT Products
Part Aliases:1731090121 F09P1G2
SKU:MOL173109-0121

Detailed Description

Enhance your connectivity with the FCT Standard-Density D-Sub Connector. This male connector, designed for straight PCB through-hole installation, features durable gold plating for optimal performance over 200 mating cycles. With 9 circuits, it ensures reliable data transmission, while its white color and sleek design add a professional touch to your setup. Operating at an amperage of 7.5A and with IP20 rating, it guarantees safe and efficient use in various environments. The copper alloy contacts with gold plating ensure high conductivity, while the PBT insert and steel shell offer robust construction. Whether for industrial or commercial applications, this connector, compliant with RoHS standards, is a dependable choice for your connectivity needs.
