173114-0265

MOL173114-0265
Heilind Number:MOL173114-0265
Manufacturer:Molex
Manufacturer Number:173114-0265
Datasheet:RoHS Certificate of Compliance
ECAD Model:
3D Model

Description:

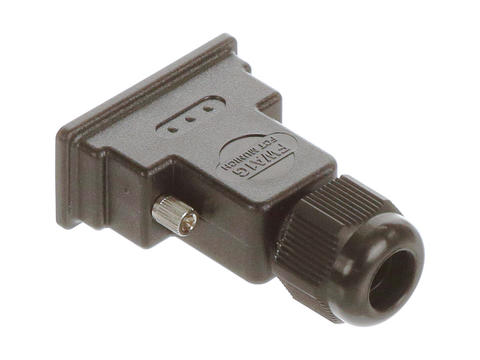

FCT D-Sub Grounded Plug with Waterproof Backshell

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:Molex
Manufacturer Part Number:Molex 173114-0265
Series:173114
Amperage:40 A
Gender:Male
Number of Contacts:1
Number of Rows:1
Termination Method:Solder Pot
Contact Plating:Gold
IP Rating:IP66, IP67
Contact Type:High-Powered Contact
Number of Ports:1
Operating Temperature Range:-25 - 70 °C
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:.8 µm
Ground to Panel / PCB:Yes
Number of Contacts Loaded:1
Mating Cycles:500
Panel Mount Method:Screws
Insert Color:Black
Contact Termination Plating Thickness:.2 µm
Product Name:FCT Products
Part Aliases:1731140265 FWA1G-1W1P-5994
SKU:MOL173114-0265

Detailed Description

Enhance your connectivity with our D-Sub Grounded Plug, featuring a waterproof backshell for reliable performance in any environment. This male plug, part of the 173114 series, is designed for high-powered applications, with a 40A amperage and gold-plated contacts for optimal conductivity. Its IP67/IP66 rating ensures protection against dust and water ingress, while its durable construction allows for operation in temperatures ranging from -25 to 70°C. With solder pot termination and panel mounting via screws, this plug offers easy and secure installation. RoHS compliant and designed for longevity, it is the perfect choice for demanding industrial or outdoor settings. Elevate your connectivity solutions with the FCT Products D-Sub Grounded Plug.
