| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 47745-0200 |
| Color: | Black |
| Series: | 47745 - CMC |
| Amperage: | 12 A, 21 A, 2.5 A |
| Connector Type: | CMC |
| Number of Contacts: | 28 |
| Number of Rows: | 4 |
| Termination Method: | Solder or Weld |
| Contact Material: | Brass |
| Body Orientation: | Right Angle |
| Pitch: | 2.5 mm, 3.5 mm, 3.7 mm |
| Voltage: | 14 V DC |
| Material: | Polyester |
| Orientation: | Right Angle |
| Keying: | Yes |
| Tail Length: | 2.9 mm |
| Packaging: | Carton |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Number of Contacts Loaded: | 28 |
| Mating Cycles: | 20 |
| PCB Locator: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 260 °C |
| Lead Free Process Capability: | WAVE |
| Duration at Max. Process Temperature (seconds): | 010 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Glow Wire Capable: | No |
| Guide to Mating Part: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Surface Mount Compatible: | No |
| Breakaway: | No |
| Make First / Break Last: | Yes |
| Shroud Type: | Closed Ends |
| Product Name: | CMC |
| Part Aliases: | 0477450200 |
| SKU: | MOL47745-0200 |
47745-0200
| Heilind Number: | MOL47745-0200 |
| Manufacturer: | Molex |
| Manufacturer Number: | 47745-0200 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Description:

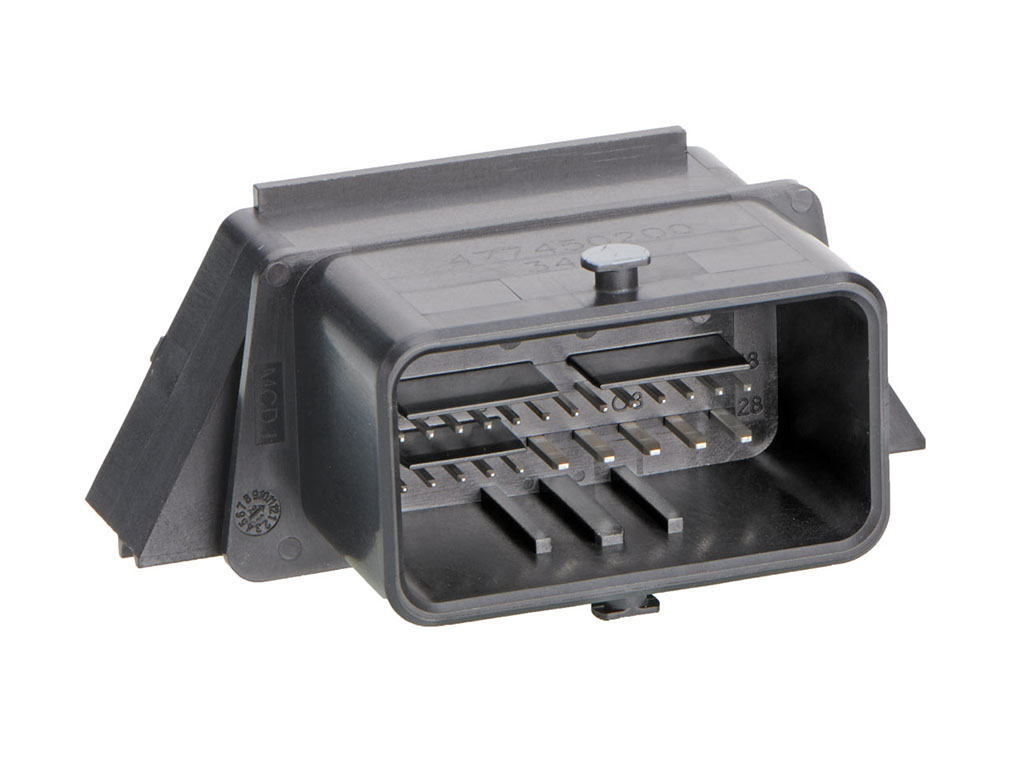

2.50mm, 3.50mm CMC Header, Right Angle, 28 Position, 1 Port, Gray, Peg, Lead-Free
More >>Specifications
Detailed Description
Elevate your electronic connections with our CMC series Right Angle Connector. Designed for optimal performance, this black connector boasts a durable polyester body and brass contact material, ensuring longevity and reliability. With 28 contacts, arranged in four rows, and a pitch range of 2.5mm to 3.7mm, it offers versatility for various applications. Suitable for 12A, 21A, and 2.5A amperages at 14V DC, it guarantees efficient power transmission. The solder or weld termination method, along with PCB locator and retention features, simplifies installation. RoHS compliant and lead-free process capable, it meets international standards for environmental responsibility. Ideal for PCB integration, this connector is a must-have for demanding industrial environments.
