Molex Micro-One 2.00mm Pitch Gold Plated Connectors
Molex Micro-One 2.00mm Gold Plated Connector delivers robust, space-efficient connectivity engineered for demanding applications, combining an Independent Secondary Lock (ISL) and Terminal Position Assurance (TPA) to eliminate terminal back-out risks, ensure proper insertion, and maintain reliable mating retention across harsh operating environments. It also supports potting for protection against dust, moisture and corrosion in harsh environments and meets stringent flammability standards with full Glow-Wire compliance.
- Provides more contact reliability
- Provides superior ergonomics and easier assembly
- Provides superior electrical performance
- Helps deliver high performance in harsh environments
- Helps achieve secure electrical contact
Electrical
- Voltage (max.): 250V
- Current (max.): 4.0A (2 -circuit)/AWG 22)
- Circuit Size: 2 to 8
- Contact Resistance (max.): 20 milliohms
- Dielectric Withstanding Voltage: 1000V AC
- Insulation Resistance (min.): 1000 Megohms
- Industrial (non-Robotics)
- Appliance & HVAC
- Computer / Datacom / Telecommunications
- Automotive (non-EV)
- Robotics
Appliance
- Washing machines/Dryers
- Microwave ovens
- Refrigerators
Automotive
- Car infotainment wirings
- Display modules
- Lighting systems
- Sensor and actuator connections
- Switches
HVAC
- Air conditioners
- Heat pumps
- Humidifiers
- Ventilators
Industrial Automation
- Drones
- Factory automation equipment
- Power tools
- Robotics
- Sensors
Power for Data Centers
- Servers
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||

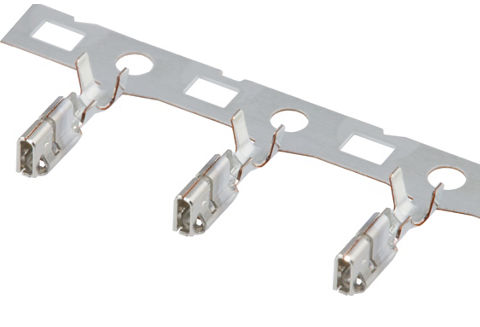

| Micro-One Female Crimp Terminal, 2.00mm Pitch, 0.10µm Gold (Au) Plating, 24-22 AWG, Reel | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||

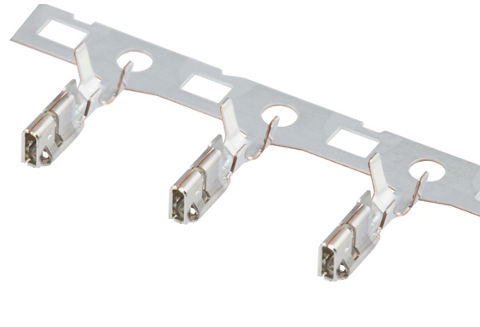

| Micro-One Female Crimp Terminal, 2.00mm Pitch, 0.10µm Gold (Au) Plating, 28-26 AWG, Reel | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||
| Micro-One Wire-to-Board Header, Vertical, 2.00mm Pitch, Single Row, Glow-Wire Capable, Surface Mount, 2 Circuits, Gold Plating, Black, Potting Capability, with Cover Tape | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||
| Micro-One Wire-to-Board Header, Vertical, 2.00mm Pitch, Single Row, Glow-Wire Capable, Surface Mount, 4 Circuits, Gold Plating, Black, Potting Capability, with Cover Tape | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||
| Micro-One Wire-to-Board Header, Vertical, 2.00mm Pitch, Single Row, Glow-Wire Capable, Surface Mount, 8 Circuits, Gold Plating, Black, Potting Capability, with Cover Tape | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||
| Micro-One Wire-to-Board Header, Right-Angle, 2.00mm Pitch, Single Row, Glow-Wire Capable, Surface Mount, 2 Circuits, Gold Plating, Black | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||
| Micro-One Wire-to-Board Header, Right-Angle, 2.00mm Pitch, Single Row, Glow-Wire Capable, Surface Mount, 4 Circuits, Gold Plating, Black | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||
| Micro-One Wire-to-Board Header, Right-Angle, 2.00mm Pitch, Single Row, Glow-Wire Capable, Surface Mount, 8 Circuits, Gold Plating, Black | |||
