| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Omron Electric |
| Manufacturer Part Number: | Omron Electric G3VM-41GR6 |
| Series: | G3VM |
| Mount Type: | Surface Mount |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -20 °C |
| Contact Configuration: | SPST-NO |
| Output Device: | MOSFET |
| Contact Termination: | Solder |
| Load Current: | 120 mA |
| Load Voltage: | 40 V |
| On-State Resistance: | 15 Ohm |
| SKU: | OMRG3VM-41GR6 |

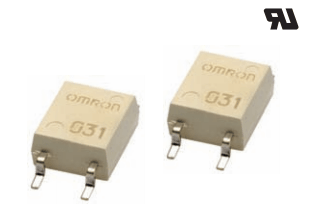

G3VM-41GR6
| Heilind Number: | OMRG3VM-41GR6 |
| Manufacturer: | Omron Electric |
| Manufacturer Number: | G3VM-41GR6 |
| ECAD Model: | |
Specifications
Detailed Description
The G3VM-41GR6 is a high-quality solid-state relay designed for efficient switching applications. With a surface mount configuration and RoHS compliance, it ensures easy installation while meeting environmental standards. Operating between -20°C to 85°C, this relay guarantees reliable performance even in varying temperature conditions. Featuring a SPST-NO contact configuration, it offers seamless control of circuits. The output device, a MOSFET, delivers precise switching with an on-state resistance of 15 Ohms. With a load current of 120mA and load voltage of 40V, it is suitable for a wide range of low-power applications. Trust in the G3VM series for dependable solid-state relay solutions.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 10/01/2016 | REL-170 - Change of packing label print due to addition of MSL (Moisture Sensitivity Level) indication. | Download | |||
