| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls HP7-DF13322 |
| Series: | HP7 |
| Cap Color: | Black |
| IP Rating: | IP68S |
| Case Color: | Black |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Flush Dome) |
| Actuator Shape: | Round |
| Mounting Style: | Panel Mount |
| Actuator Length: | .27 in |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | PC Pin |
| Actuator Material: | Thermoplastic |
| Durability Rating (Cycles): | 10,000,000 Cycles |
| Voltage Rating (DC): | 3 - 24 VDC |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | OTTHP7-DF13322 |
HP7-DF13322
Specifications
Detailed Description

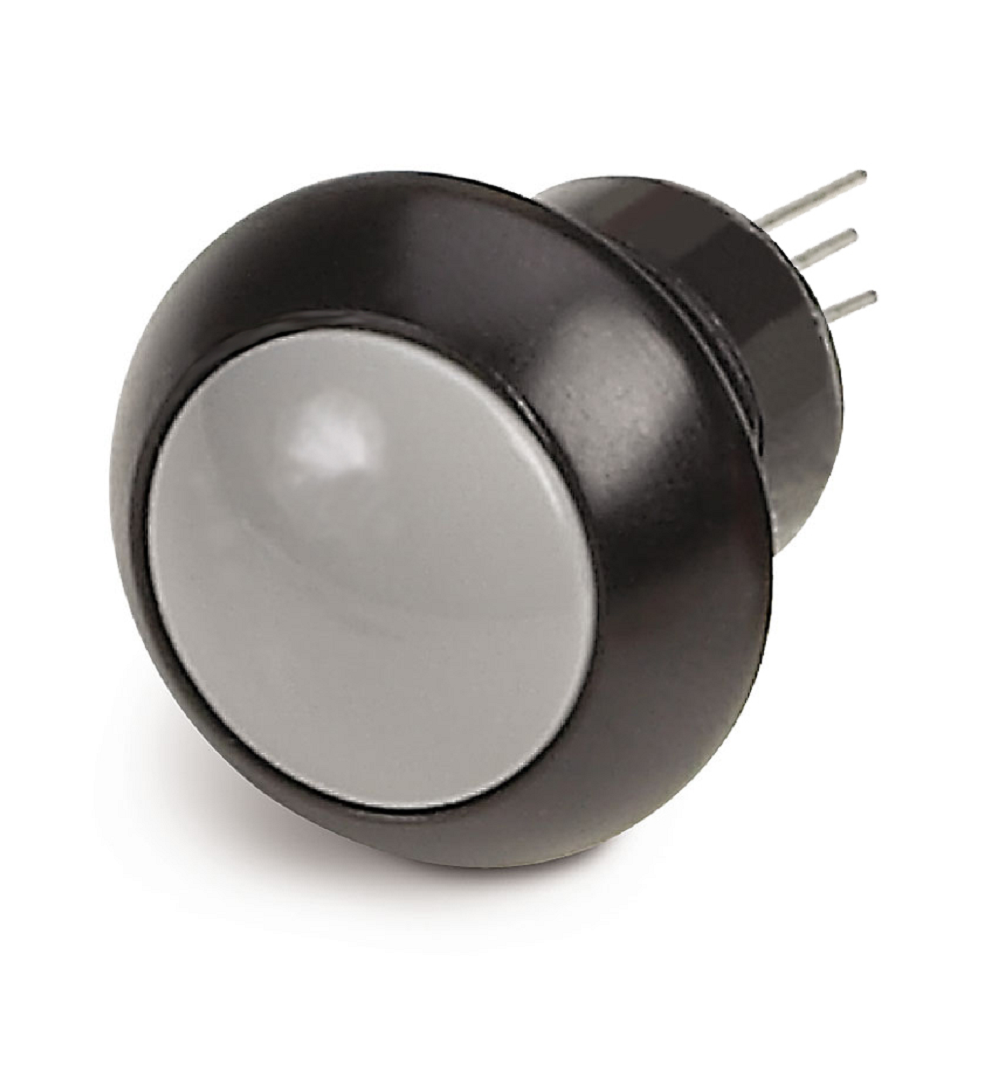

Introducing the HP7-DF13322, a high-performance Hall Effect Momentary Pushbutton Switch from our HP7 series. Designed for durability with a rating of 10,000,000 cycles, this switch ensures long-lasting functionality in demanding environments. Featuring a sleek black aluminum housing and a flush dome button actuator, it offers both durability and a modern aesthetic. With an IP68S rating, it is sealed against dust and water ingress, making it ideal for use in rugged applications. The switch operates at a voltage range of 3-24 VDC, with a wide temperature range from -40°C to 85°C, guaranteeing reliable performance in various conditions. Perfect for panel mounting, it is suitable for a range of industrial and commercial applications. Upgrade your control systems with the HP7-DF13322, the ultimate choice for precision and durability.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
