| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls HP7-DF15322 |
| Series: | HP7 |
| Housing Material: | Aluminum |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP68S |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Flush Dome) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Wire Leads |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .27 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 10,000,000 Cycles |
| Mounting Style: | Panel Mount |
| Voltage Rating (DC): | 3 - 24 VDC |
| SKU: | OTTHP7-DF15322 |

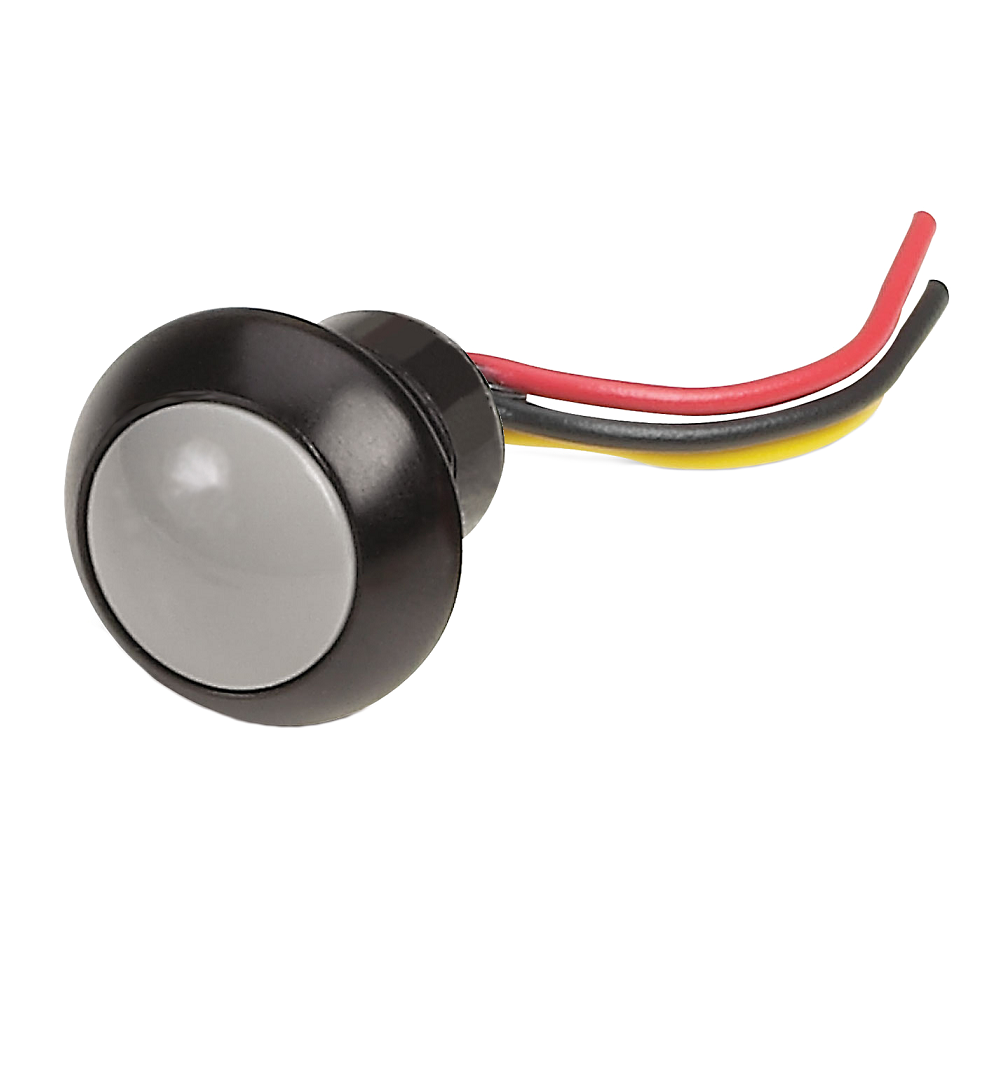

HP7-DF15322
Specifications
Detailed Description
Introducing the HP7-DF15322, part of the HP7 series, a rugged and reliable Hall Effect Momentary Pushbutton Switch designed for demanding environments. With a sleek black aluminum housing and IP68S ingress protection rating, this switch ensures durability and performance in harsh conditions. The button features a flush dome actuator with a round shape, providing a tactile and responsive interface. Ideal for panel mounting, it offers a secure and stable installation. With a lifespan of 10,000,000 cycles, it guarantees long-term operation. Operating at voltages ranging from 3 to 24 VDC and with a wide temperature range from -40°C to 85°C, it is suitable for a variety of applications. The HP7-DF15322 is the perfect choice for high-reliability pushbutton switching needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
