| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls HP7-DF45322 |
| Series: | HP7 |
| Cap Color: | Black |
| IP Rating: | IP68S |
| Case Color: | Black |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Flush Dome) |
| Actuator Shape: | Round |
| Mounting Style: | Panel Mount |
| Actuator Length: | .27 in |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Wire Leads |
| Actuator Material: | Thermoplastic |
| Durability Rating (Cycles): | 10,000,000 Cycles |
| Voltage Rating (DC): | 3 - 24 VDC |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | OTTHP7-DF45322 |
HP7-DF45322
Specifications
Detailed Description

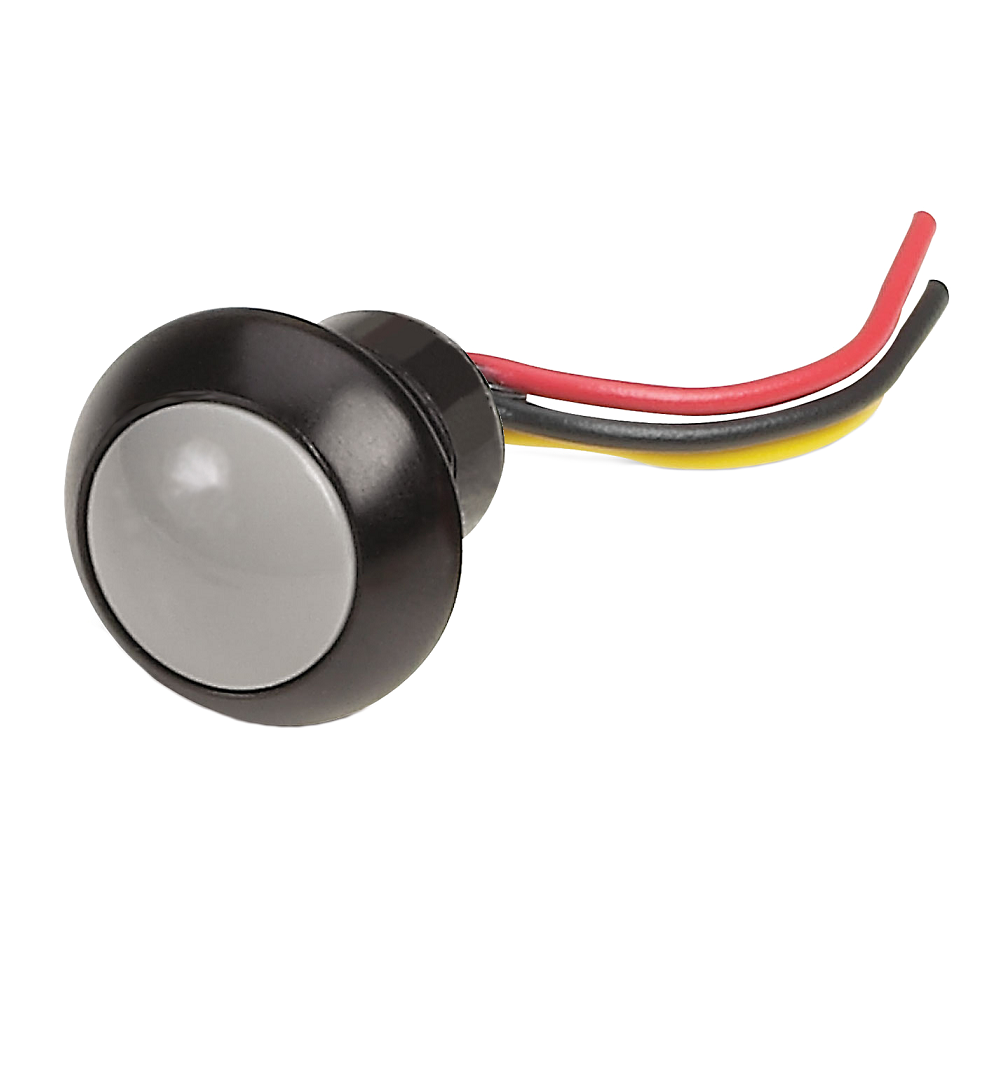

Introducing the HP7DF45322, a high-performance Hall Effect Momentary Pushbutton Switch designed for durability and reliability in demanding environments. With an IP68S rating, this switch ensures protection against dust and water ingress, making it ideal for use in industrial settings. The black aluminum housing and flush dome button provide a sleek and rugged design, while the thermoplastic actuator guarantees smooth operation. Rated for 10,000,000 cycles, this switch offers long-lasting performance. Suitable for panel mounting, it features wire leads for easy installation. Operating at voltages ranging from 3 to 24 VDC and with a wide temperature range from -40°C to 85°C, the HP7DF45322 is a versatile solution for various applications. Upgrade to this sealed pushbutton switch for enhanced efficiency and durability.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
