| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls HP7-DR15222 |
| Series: | HP7 |
| Housing Material: | Aluminum |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP64 |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Raised Dome) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Wire Leads |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .385 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 10,000,000 Cycles |
| Mounting Style: | Panel Mount |
| Voltage Rating (DC): | 3 - 24 VDC |
| SKU: | OTTHP7-DR15222 |
HP7-DR15222
Specifications
Detailed Description

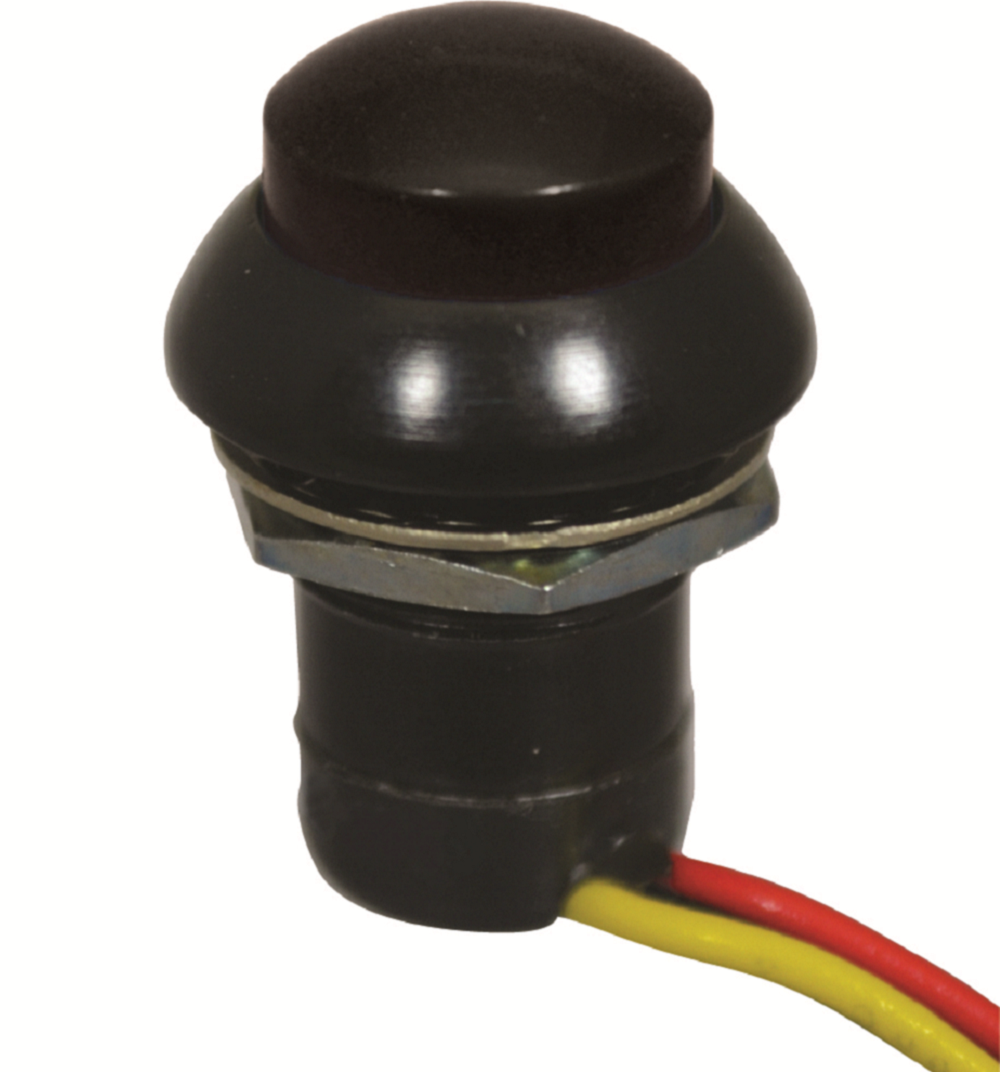

The HP7DR15222 is a high-performance Hall Effect Momentary Pushbutton Switch designed for reliable operation in demanding environments. Featuring a durable aluminum housing with a sleek black finish, this switch is IP64 rated for protection against dust and water ingress. The button actuator, made of thermoplastic, offers a tactile response with a raised dome shape. Ideal for panel mounting, it is suitable for a wide range of applications. With a lifespan of 10 million cycles, it guarantees long-term functionality. Operating at voltages ranging from 3 to 24 VDC, and with an impressive temperature range from -40°C to 85°C, it ensures consistent performance even in extreme conditions. The HP7DR15222 is the perfect choice for industrial, automotive, aerospace, and marine applications where reliability is paramount.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
