| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls HP7-DR15229 |
| Series: | HP7 |
| Housing Material: | Aluminum |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP64 |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Raised Dome) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Wire Leads |
| Actuator Shape: | Round |
| Cap Color: | White |
| Actuator Length: | .385 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 10,000,000 Cycles |
| Mounting Style: | Panel Mount |
| Voltage Rating (DC): | 3 - 24 VDC |
| SKU: | OTTHP7-DR15229 |
HP7-DR15229
Specifications
Detailed Description

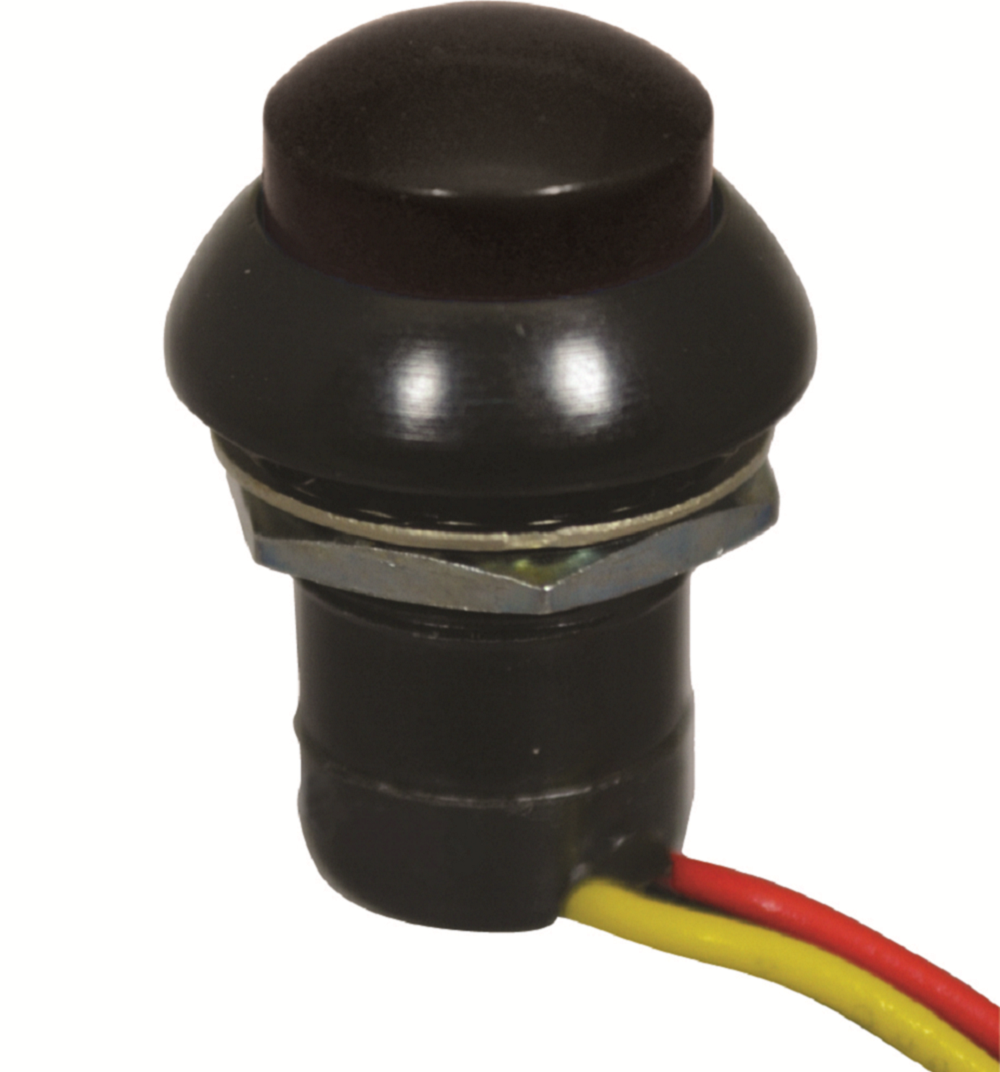

The HP7 Series Hall Effect Momentary Pushbutton Switch ( HP7-DR15229) offers reliable operation in demanding environments. With a durable design rated for 10,000,000 cycles, this switch is built to last. Its IP64 rating ensures protection against dust and water ingress, while its aluminum housing and thermoplastic actuator guarantee durability. Featuring a white button with a raised dome shape, it provides tactile feedback for easy operation. Panel mount installation and wire lead termination make it versatile for various applications. Suitable for use in temperatures ranging from -40°C to 85°C, and compatible with voltage ratings from 3 to 24 VDC, this switch is ideal for industrial and outdoor settings. Upgrade your control systems with the HP7DR15229 Pushbutton Switch.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
