| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls HP7-DR15321 |
| Series: | HP7 |
| Housing Material: | Aluminum |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP68S |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Raised Dome) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Wire Leads |
| Actuator Shape: | Round |
| Cap Color: | Red |
| Actuator Length: | .385 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 10,000,000 Cycles |
| Mounting Style: | Panel Mount |
| Voltage Rating (DC): | 3 - 24 VDC |
| SKU: | OTTHP7-DR15321 |
HP7-DR15321
Specifications
Detailed Description

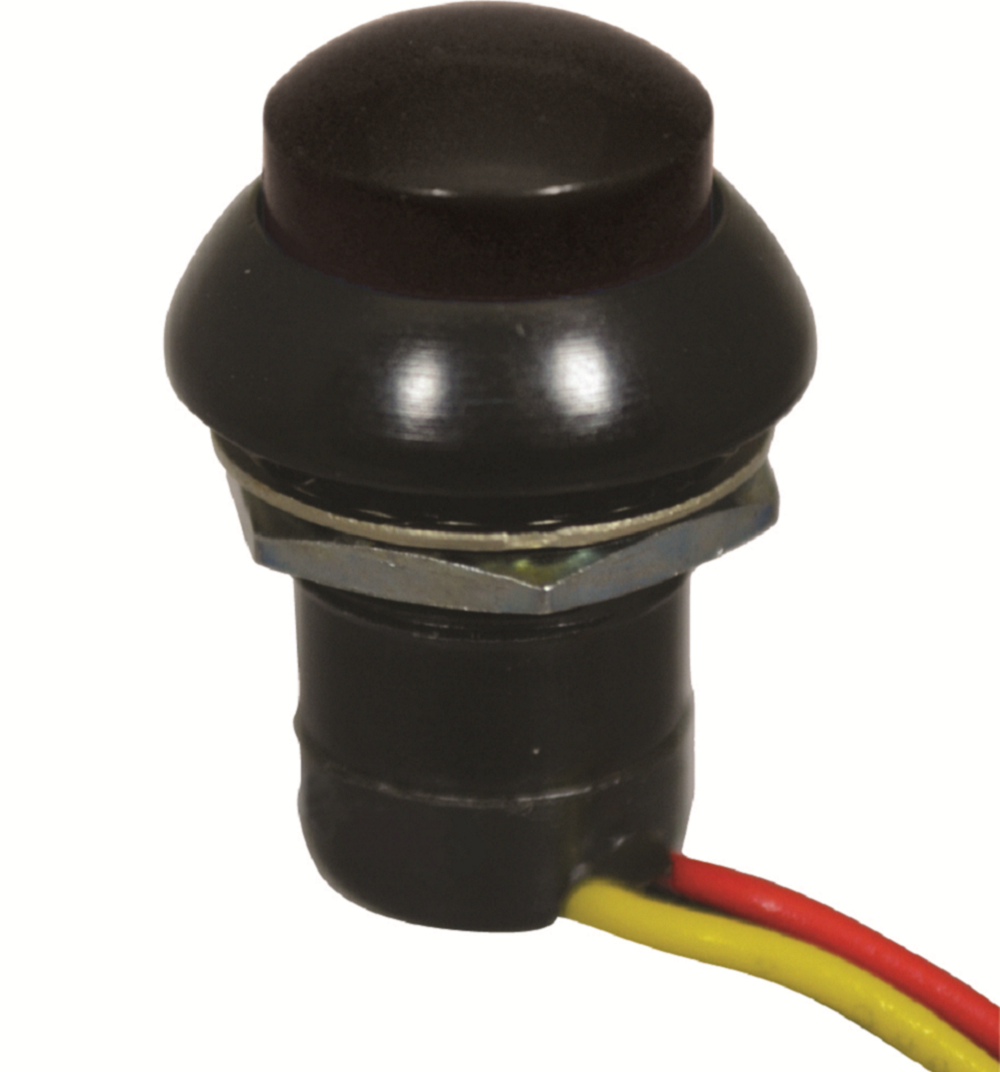

The HP7 series brings you the HP7-DR15321, a high-performance Hall Effect Momentary Pushbutton Switch designed for reliability in demanding environments. With an IP68S rating and a durable aluminum housing, this switch ensures protection against water and dust ingress, making it ideal for industrial and outdoor applications. The red button, mounted on a sleek black case, offers a visually striking design. Featuring a raised dome actuator and wire leads termination, installation is secure and straightforward. Operating within a wide voltage range of 3-24 VDC and with a durability rating of 10,000,000 cycles, this switch guarantees long-lasting performance. With a temperature tolerance ranging from -40°C to 85°C, it excels in both hot and cold conditions. Perfect for control panels, machinery, and more, the HP7-DR15321 is a reliable solution for your switching needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
