| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls HP7C-DR13122 |
| Series: | HP7C |
| Housing Material: | Thermoplastic (TP) |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP54, IP6KS |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Raised Dome Matte) |
| Case Color: | Black |
| Actuator Material: | Nylon |
| Termination Type: | PC Pin |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .401 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 10,000,000 Cycles |
| Mounting Style: | Panel Mount |
| Voltage Rating (DC): | 4.5 - 24 VDC |
| SKU: | OTTHP7C-DR13122 |

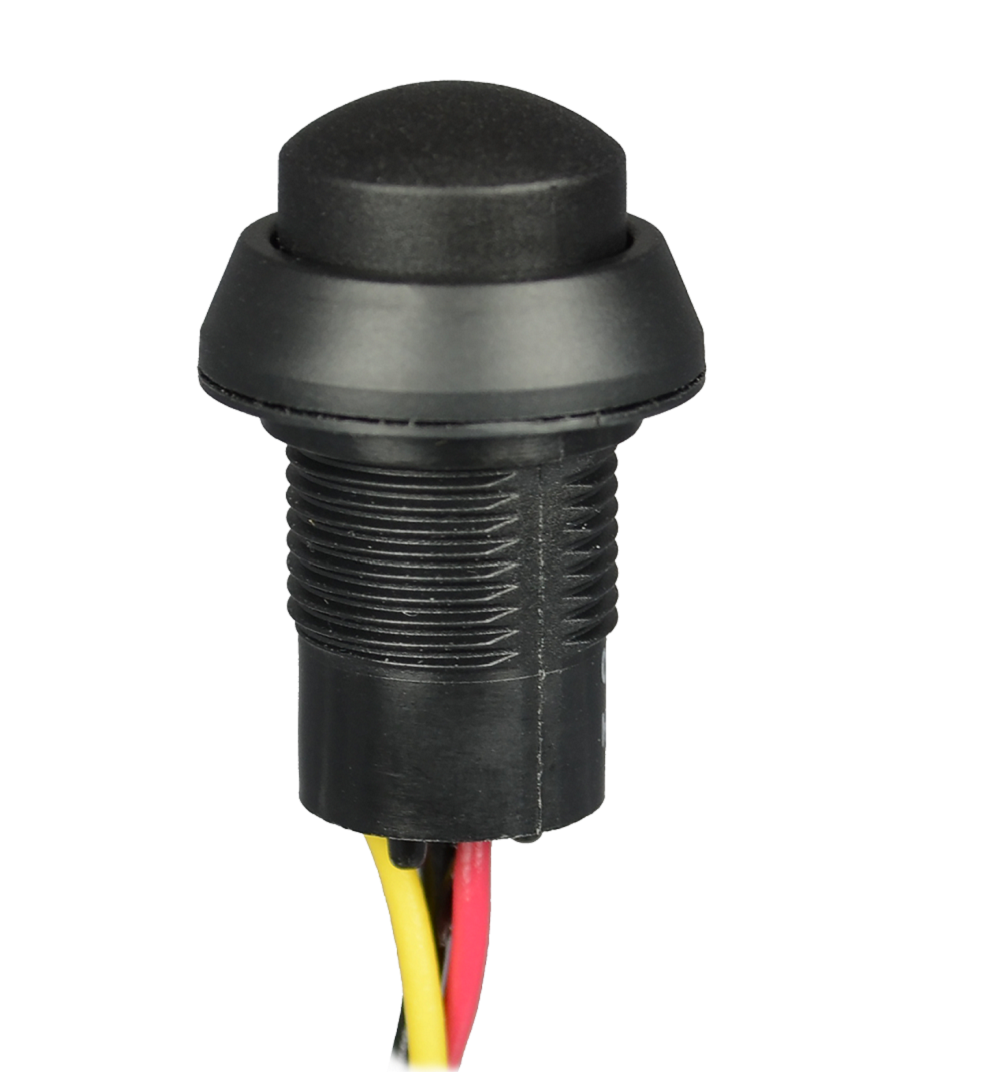

HP7C-DR13122
Specifications
Detailed Description
Introducing the HP7C-DR13122, a member of the HP7C series of durable and reliable push button switches. With a sleek black cap and case, this IP54 and IP6KS rated switch is designed for panel mounting, making it perfect for various applications. The button features a raised dome matte actuator, offering a satisfying tactile feedback. Constructed with high-quality thermoplastic and nylon materials, it ensures longevity with a durability rating of 10,000,000 cycles. Operating at voltages ranging from 4.5 to 24 VDC, and with a wide temperature range from -40°C to 85°C, this switch is suitable for diverse environments. Whether in industrial machinery or consumer electronics, the HP7C-DR13122 guarantees performance and reliability.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
