LP3-31D322R

OTTLP3_31D322R
Heilind Number:OTTLP3-31D322R
Manufacturer:OTTO Controls
Manufacturer Number:LP3-31D322R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

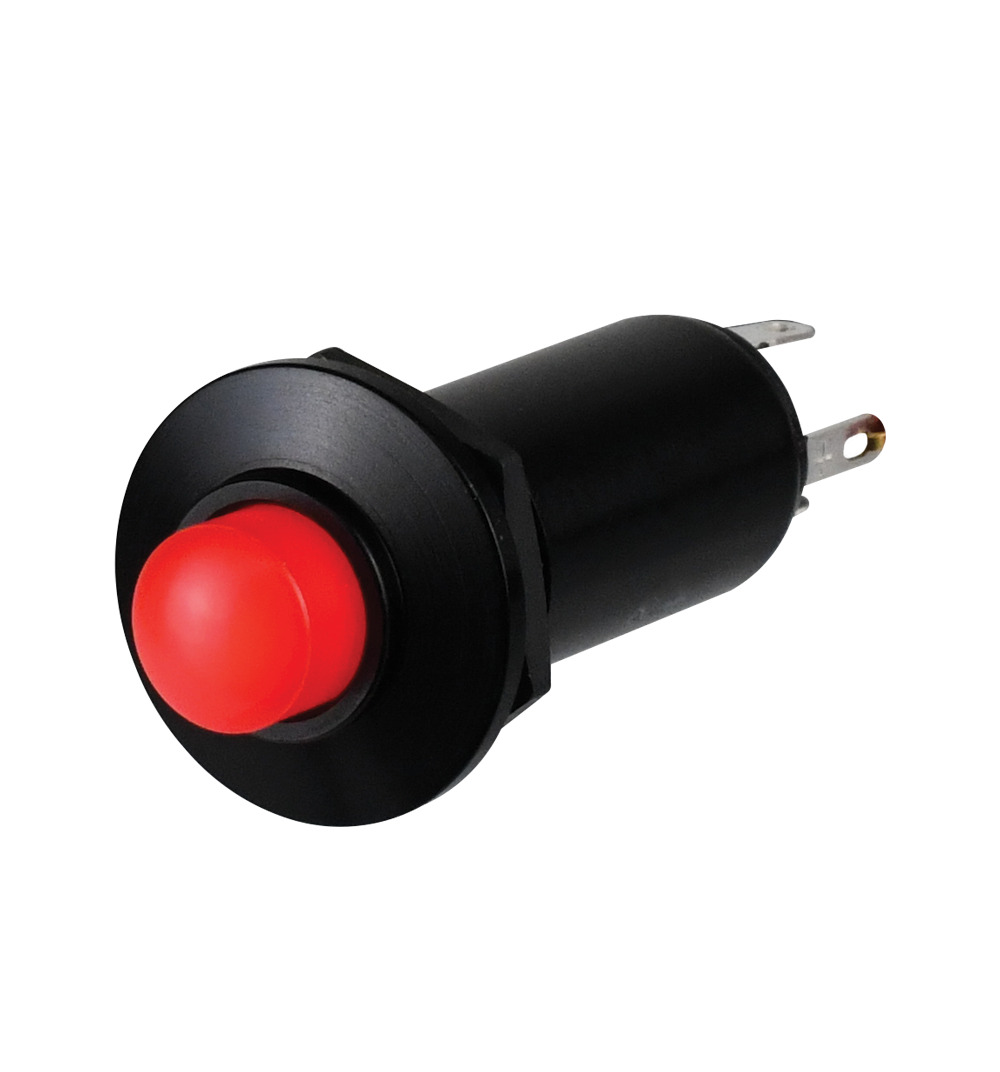

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-31D322R
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:6 V
SKU:OTTLP3-31D322R

Detailed Description

Introducing the LP3 Series Illuminated Sealed Pushbutton Switch, SKU LP3-31D322R. This high-performance switch features a durable aluminum housing in sleek black, with a translucent red cap for visual indication. Designed for panel mounting, it boasts an IP6K8S rating for reliable sealing against environmental factors. The momentary action button, with a raised dome actuator, ensures smooth operation with a lifespan of 25,000 cycles. The switch offers a current rating of 5A, with silver-plated brass contacts for optimal conductivity. Illuminated by a red LED, it provides clear feedback even in low-light conditions. With a voltage rating of 28VDC (115VAC), this switch is suitable for a wide range of applications. From industrial machinery to consumer electronics, the LP3 Series is the perfect choice for dependable performance.
