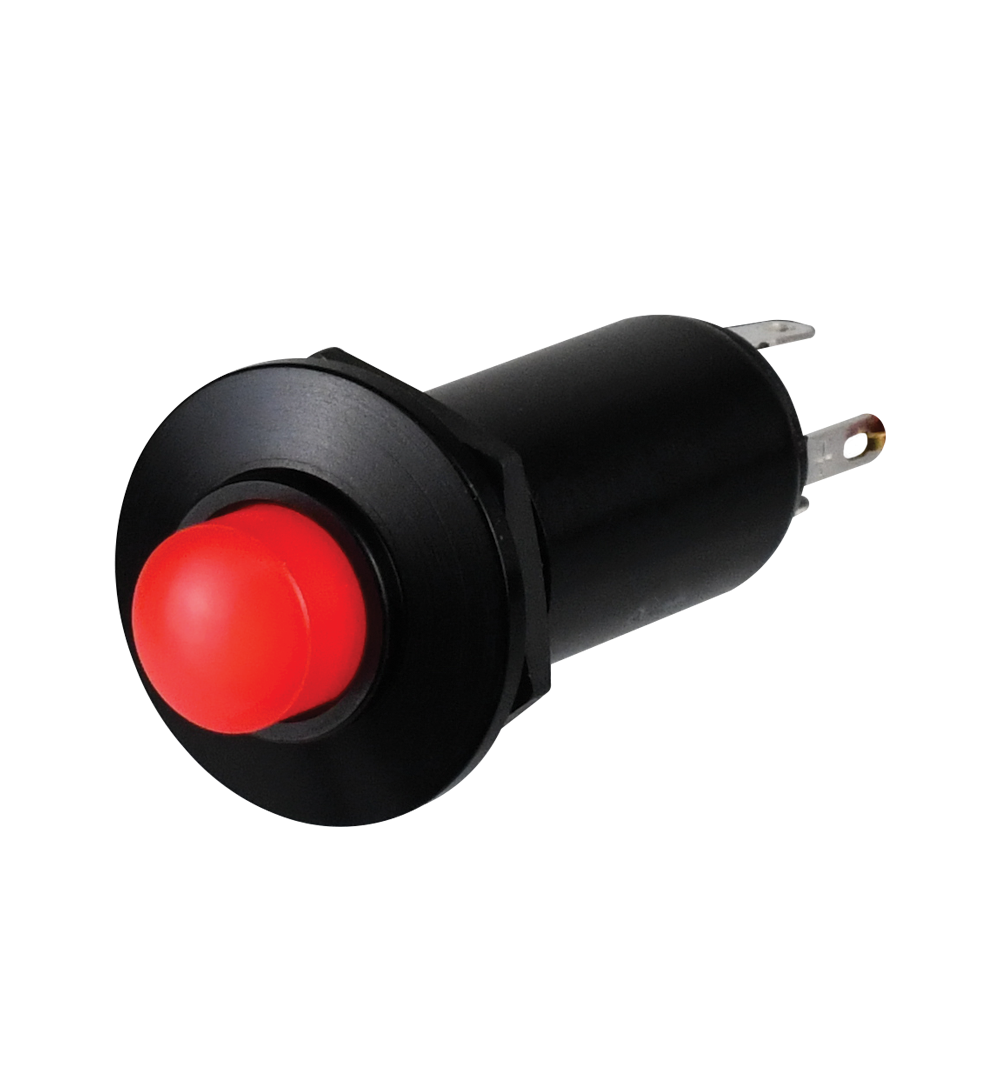

LP3-31J321A

OTTLP3_31J321A
Heilind Number:OTTLP3-31J321A
Manufacturer:OTTO Controls
Manufacturer Number:LP3-31J321A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-31J321A
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Amber - Translucent
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
SKU:OTTLP3-31J321A

Detailed Description

Introducing the LP3 Series Sealed Pushbutton Switch, featuring a durable and sleek design perfect for various applications. This illuminated switch, with an amber translucent cap, offers a visually appealing touch. Crafted with an aluminum housing and thermoplastic actuator, it ensures longevity and reliability, with a durability rating of 25,000 cycles. The momentary action button, with a raised dome shape, provides responsive control. Operating at temperatures ranging from -55°C to 85°C, and with a voltage rating of 28VDC/115VAC, this switch is suitable for diverse environments. Its SPST-NO contact configuration and silver-plated contact material guarantee efficient and low-maintenance performance. Ideal for panel mounting, it boasts an IP6K8S rating for dust and water protection. Trust in the LP3-31J321A for high-quality and illuminated switching solutions.
