LP3-31K351R

OTTLP3_31K351R
Heilind Number:OTTLP3-31K351R
Manufacturer:OTTO Controls
Manufacturer Number:LP3-31K351R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

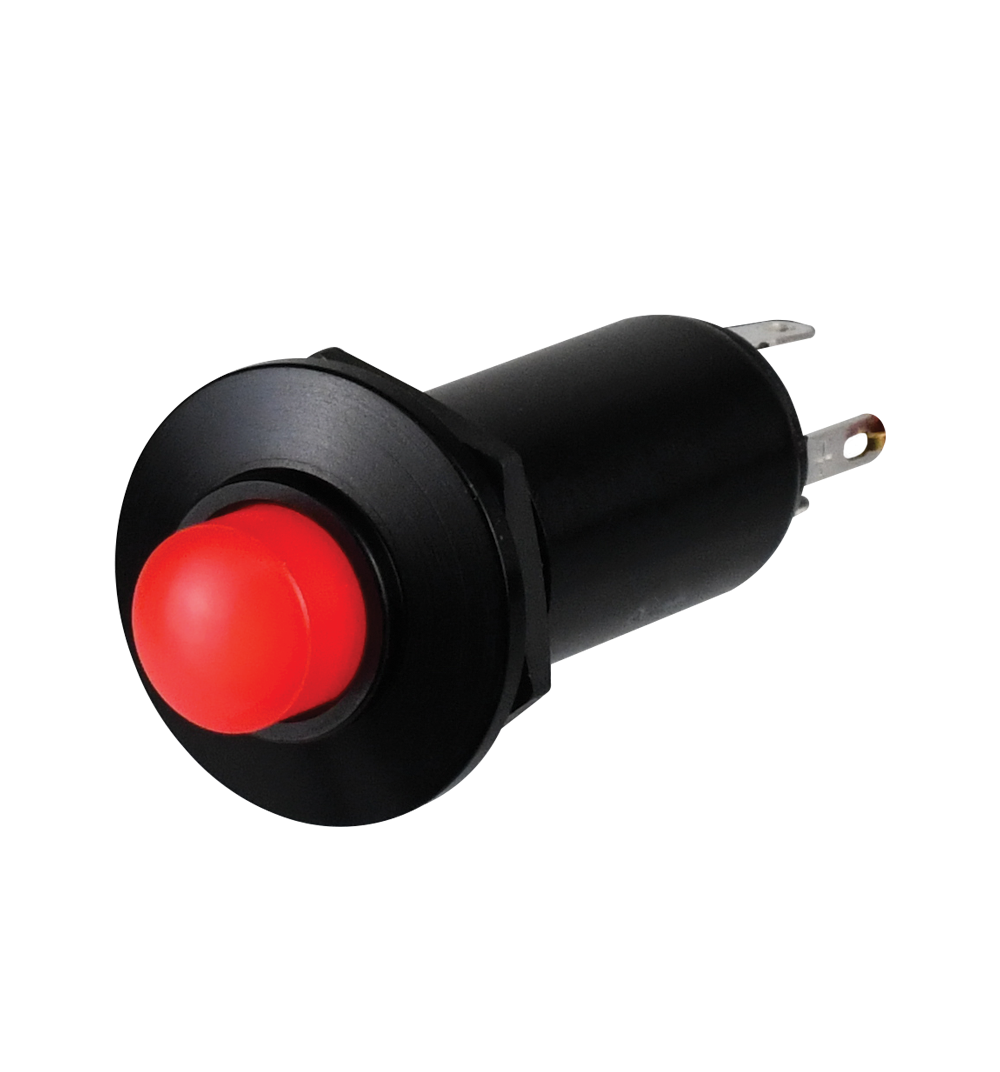

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-31K351R
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP3-31K351R

Detailed Description

Introducing the LP3 Series Illuminated Pushbutton Switch with the SKU LP3-31K351R, a high-performance component designed for demanding environments. Featuring a durable aluminum housing and a sealed construction with an IP6K8S rating, this switch ensures reliable operation even in harsh conditions. The raised dome button actuator, crafted from thermoplastic, offers a comfortable and responsive user experience. With a contact configuration of SPST-NO and a current rating of 5A, it guarantees efficient and safe electrical connections. The red translucent cap and LED illumination, powered by 24V, provide clear visual feedback. Ideal for panel mount installation, this switch is perfect for applications requiring momentary action control. Trust in its 25,000 cycle durability rating and wide operating temperature range from -55°C to 85°C. Upgrade your systems with the LP3 Series Illuminated Pushbutton Switch for dependable performance.
