LP3-31L252W

OTTLP3_31L252W
Heilind Number:OTTLP3-31L252W
Manufacturer:OTTO Controls
Manufacturer Number:LP3-31L252W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

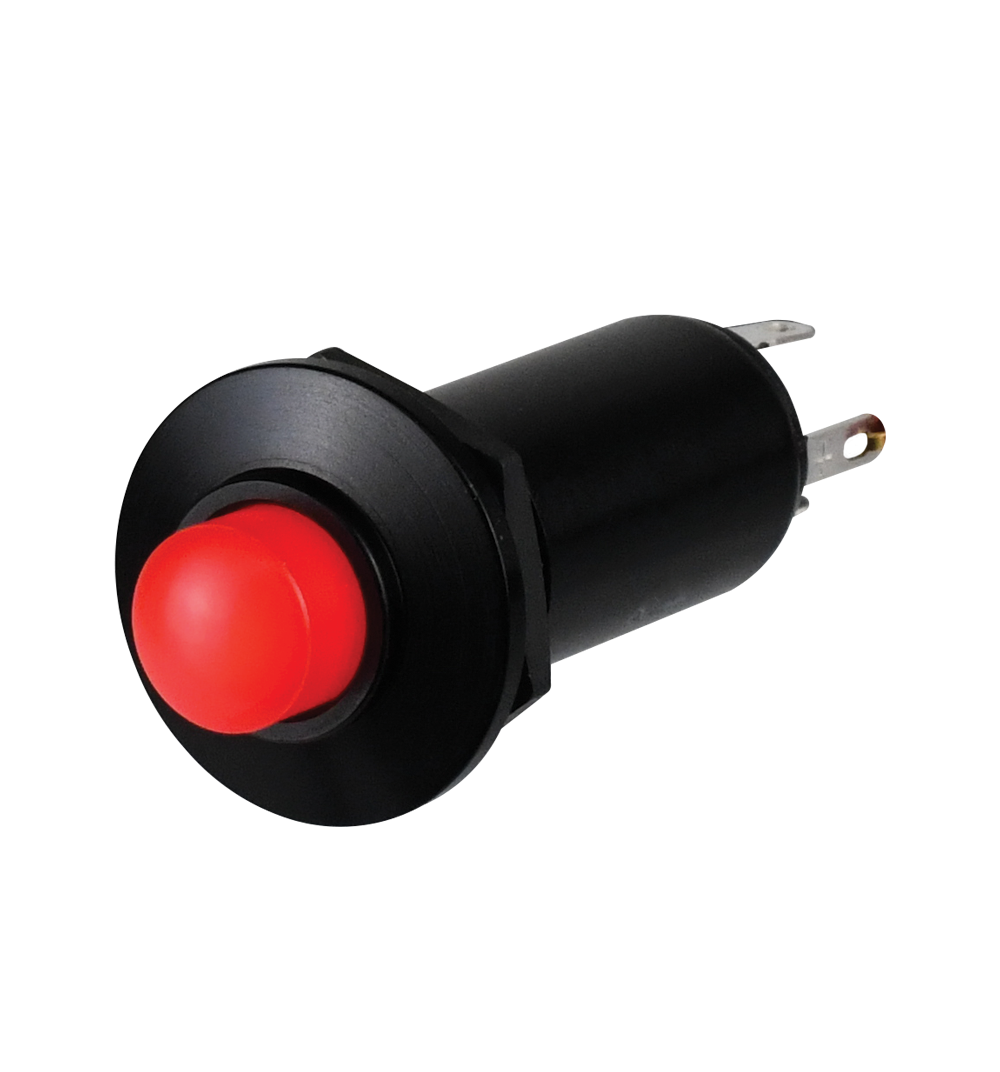

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-31L252W
Series:LP3
Cap Color:White - Translucent
IP Rating:IP64KS
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Raised Dome)
Actuator Shape:Round
Mounting Style:Panel Mount
Actuator Length:.25 in
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (DC):28 VDC
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Current Rating:5 A
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Voltage Rating (AC):115 VAC
Illumination Color:Green
Illumination Voltage:24 V
Contact Configuration:SPST-NO
SKU:OTTLP3-31L252W

Detailed Description

The LP3-31L252W is a high-quality pushbutton switch designed for reliable performance in demanding environments. Featuring a durable aluminum housing and sealed construction with an IP64KS rating, this switch is suitable for use in a wide range of applications. The illuminated button, with a green LED light, provides clear visual feedback, while the raised dome actuator ensures comfortable and precise operation. With a voltage rating of 28VDC and current rating of 5A, this switch is capable of handling heavy-duty tasks. Its momentary action, SPST-NO contact configuration, and silver-plated brass contacts guarantee efficient and responsive functionality. Whether used in industrial machinery or aerospace systems, the LP3 series switch delivers long-lasting durability and performance.
