LP3-32K351R

OTTLP3_32K351R
Heilind Number:OTTLP3-32K351R
Manufacturer:OTTO Controls
Manufacturer Number:LP3-32K351R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

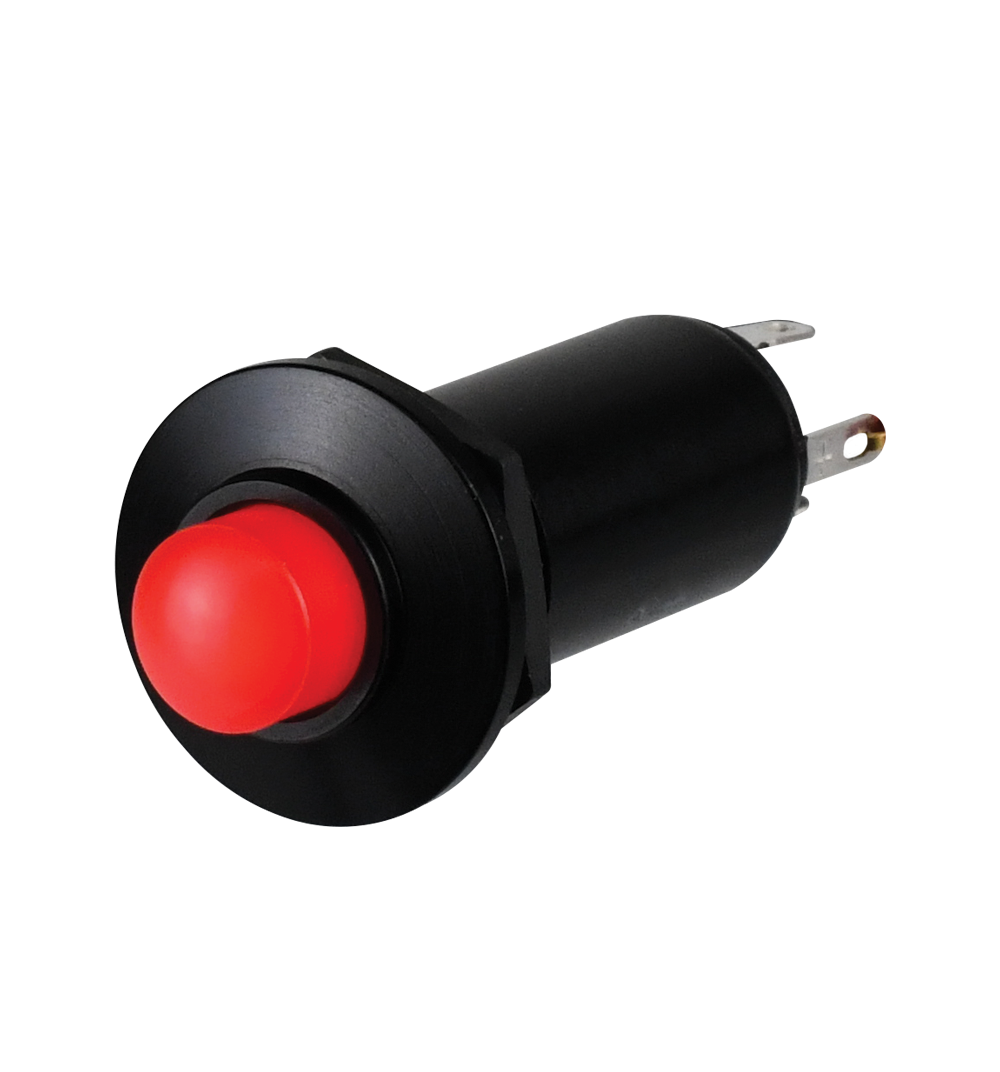

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-32K351R
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NC
Actuator Type:Button (Raised Dome)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.25 in
Switch Function:ON-OFF
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP3-32K351R

Detailed Description

The LP3 series pushbutton switch in red translucent is a high-performance component designed for demanding environments. With an IP6K8S rating, it ensures reliable operation even in harsh conditions. The aluminum housing and thermoplastic actuator guarantee durability, with a lifespan of 25,000 cycles. Featuring a round raised dome button, it offers comfortable tactile feedback. Panel mount installation and solder termination make it easy to integrate into any system. Illuminated with a red light, it provides clear visual indication. This SPST-NC switch with a 5A current rating and 28VDC voltage rating is suitable for various applications. From industrial machinery to automotive systems, the LP3 pushbutton switch delivers exceptional performance.
