LP3-33A122R

OTTLP3_33A122R
Heilind Number:OTTLP3-33A122R
Manufacturer:OTTO Controls
Manufacturer Number:LP3-33A122R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

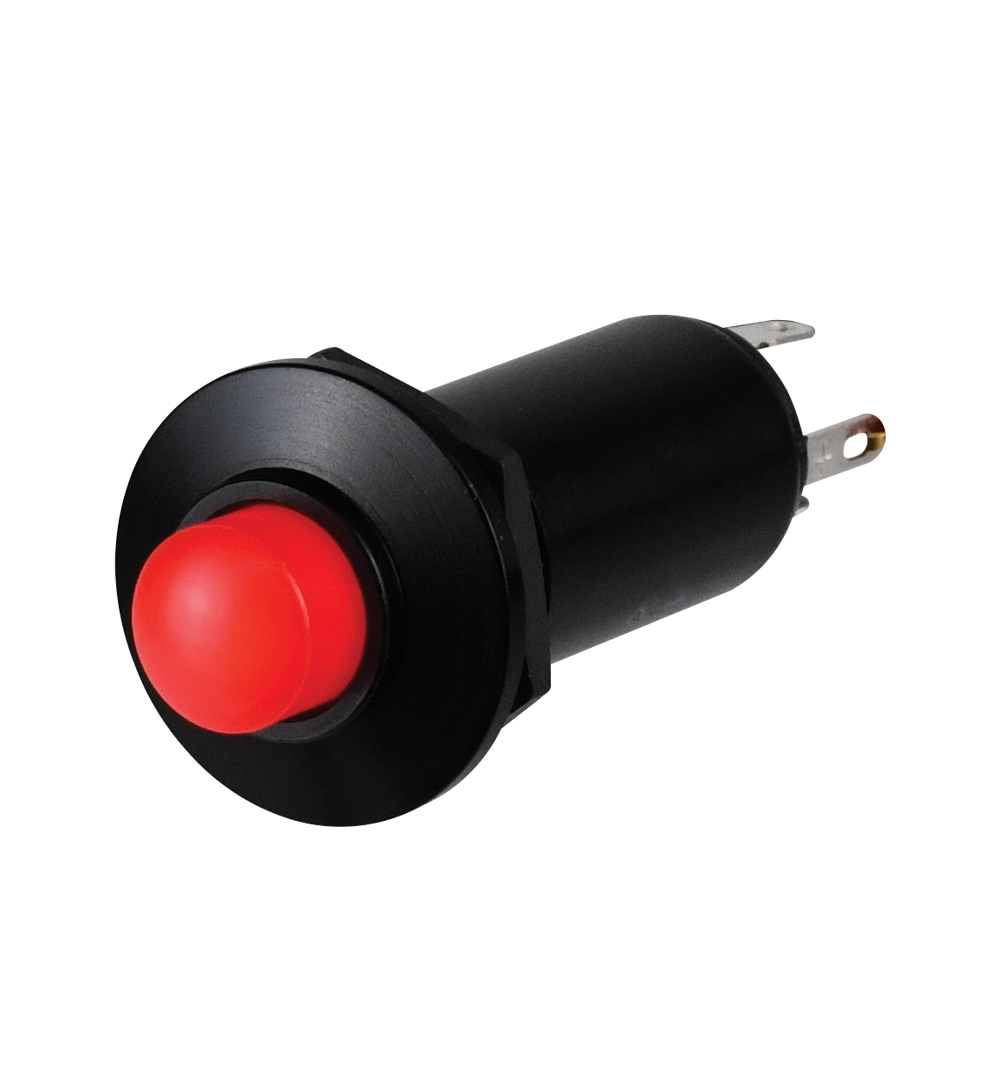

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-33A122R
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Illumination:Illuminated
Contact Configuration:SPDT-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP3-33A122R

Detailed Description

Introducing the LP3 Series Illuminated Pushbutton Switch, LP3-33A122R. Featuring a sleek design with a Red Translucent cap and a durable Black aluminum case, this switch is both visually striking and robust. Its Button (Raised Dome) actuator, with a Round shape and a .25-inch length, offers tactile feedback for easy operation. Perfect for panel mounting, this switch is sealed for protection and has a solder termination type. With a high durability rating of 25,000 cycles and a current rating of 5A, it ensures reliable performance. The SPDT-NO contact configuration and Off-(On) switch function make it versatile for various applications. Illuminated with a Red light, it adds a visual cue to its operation. Operating at temperatures ranging from -55°C to 85°C and with voltage ratings of 28VDC and 115VAC, this switch is suitable for a wide range of environments. Upgrade your control panels with the LP3 Series for a premium switching experience.
