LP3-33C352A

OTTLP3_33C352A
Heilind Number:OTTLP3-33C352A
Manufacturer:OTTO Controls
Manufacturer Number:LP3-33C352A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

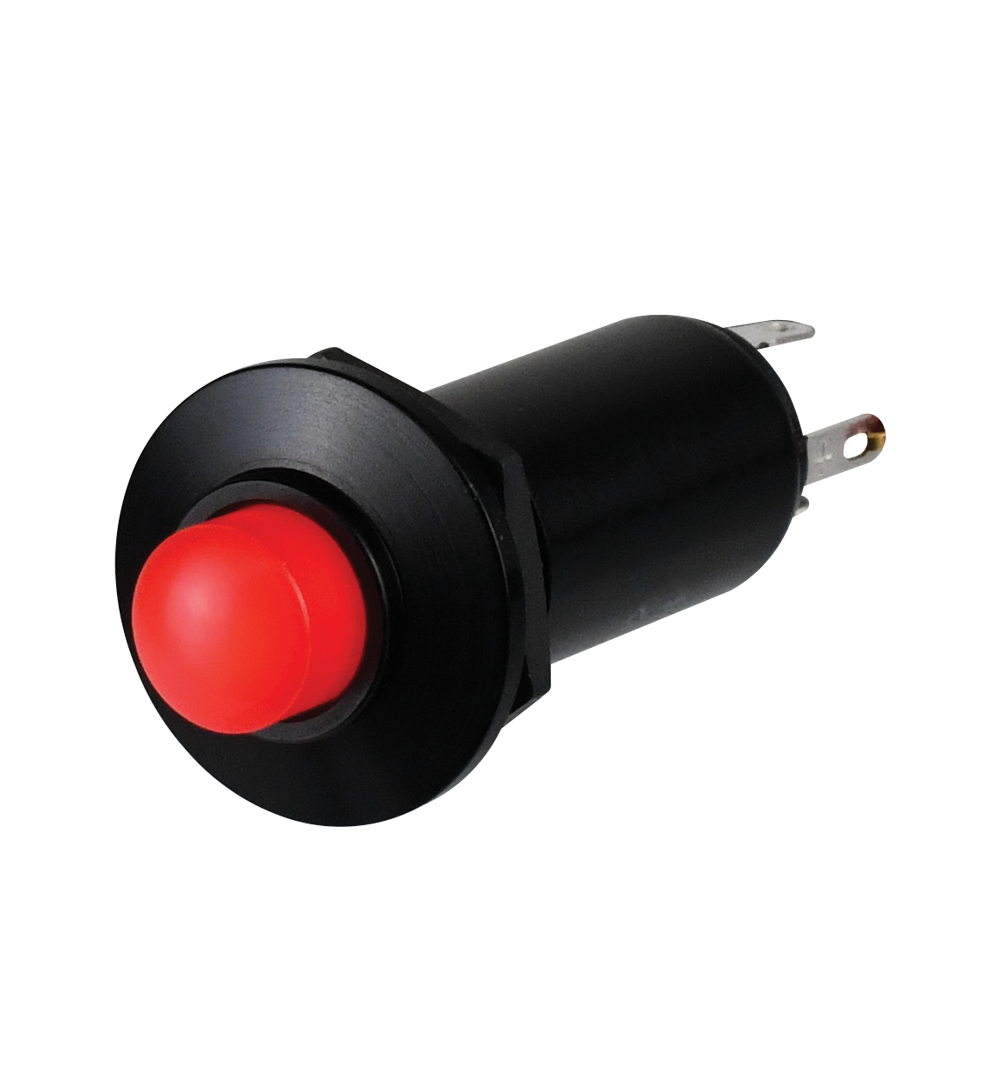

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-33C352A
Series:LP3
Cap Color:Amber - Translucent
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Raised Dome)
Actuator Shape:Round
Mounting Style:Panel Mount
Actuator Length:.25 in
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (DC):28 VDC
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Current Rating:5 A
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Voltage Rating (AC):115 VAC
Illumination Color:Amber
Illumination Voltage:2 V
Contact Configuration:SPDT-NO
SKU:OTTLP3-33C352A

Detailed Description

The LP3 series pushbutton switch, SKU LP3-33C352A, offers reliable performance in demanding environments. With an IP6K8S rating, this switch is dust-tight and waterproof, ensuring durability in industrial settings. The illuminated amber button, made of thermoplastic, provides clear visibility in low light conditions. Featuring a sealed design and a maximum operating temperature of 85°C, it is suitable for outdoor applications as well. The SPDT-NO contact configuration and silver contact plating guarantee efficient electrical conductivity, while the 25,000 cycle durability rating ensures long-lasting use. Ideal for panel mounting, this switch is perfect for control panels, machinery, and other electronic devices. With a voltage rating of 28VDC and 115VAC, and a current rating of 5A, it offers versatile compatibility. The LP3 pushbutton switch is a dependable solution for your switching needs.
