LP3-33H352W

OTTLP3_33H352W
Heilind Number:OTTLP3-33H352W
Manufacturer:OTTO Controls
Manufacturer Number:LP3-33H352W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

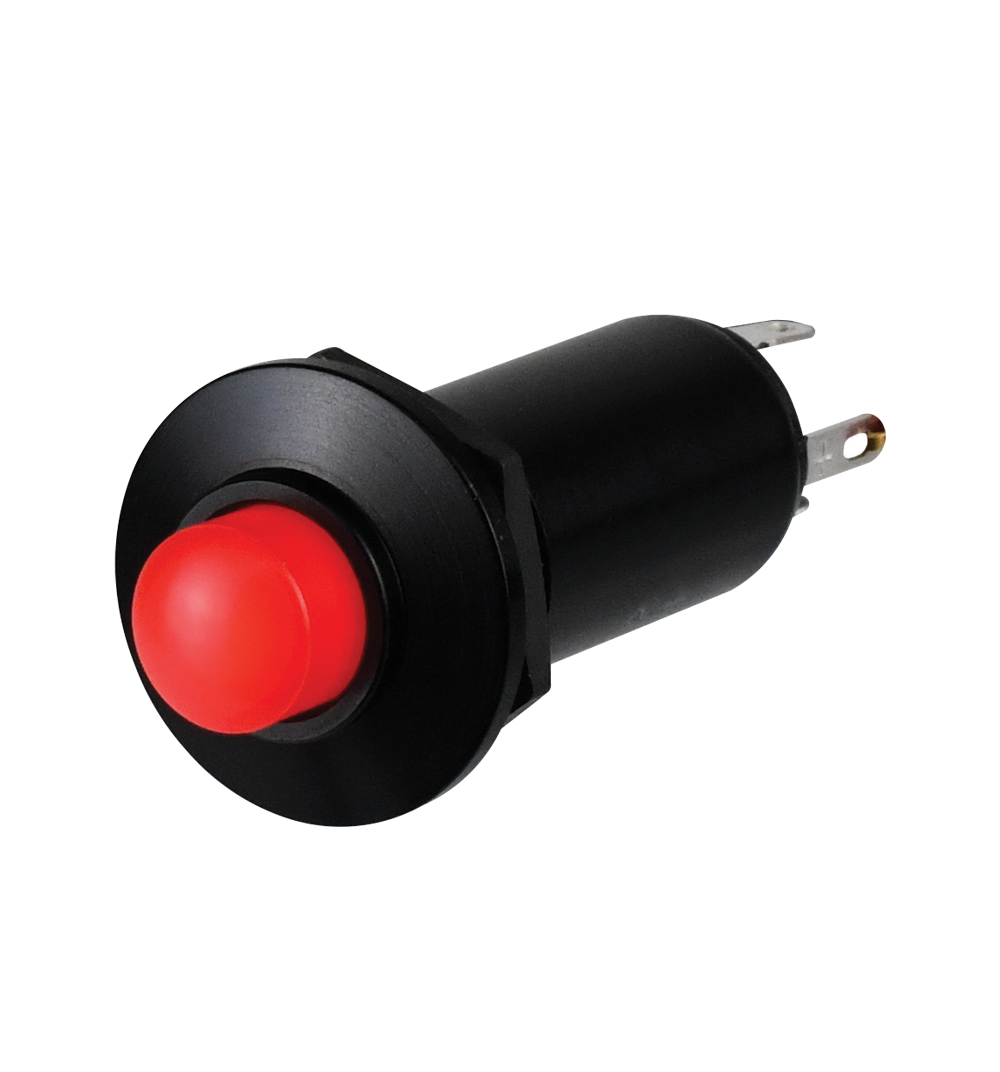

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-33H352W
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP3-33H352W

Detailed Description

Introducing the LP333H352W, a durable and versatile pushbutton switch designed for a wide range of applications. Featuring a raised dome button with a round shape, this switch offers a smooth and ergonomic actuation experience. The white-translucent cap and green illumination add a visually appealing touch while providing clear indication of operation. With a sealed housing made of aluminum and a thermoplastic actuator, the LP333H352W ensures reliable performance even in harsh environments. Rated for 25,000 cycles and capable of handling up to 5A current at 28VDC or 115VAC, this switch is built to last. Whether for industrial machinery, automotive controls, or aerospace systems, the LP333H352W is the perfect choice for high-performance and high-reliability applications.
