| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls LP3-41A122R |
| Series: | LP3 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| Illumination: | Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Raised Dome) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Red - Translucent |
| Actuator Length: | .25 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Illumination Color: | Red |
| Illumination Voltage: | 2 V |
| SKU: | OTTLP3-41A122R |
LP3-41A122R
Specifications
Detailed Description

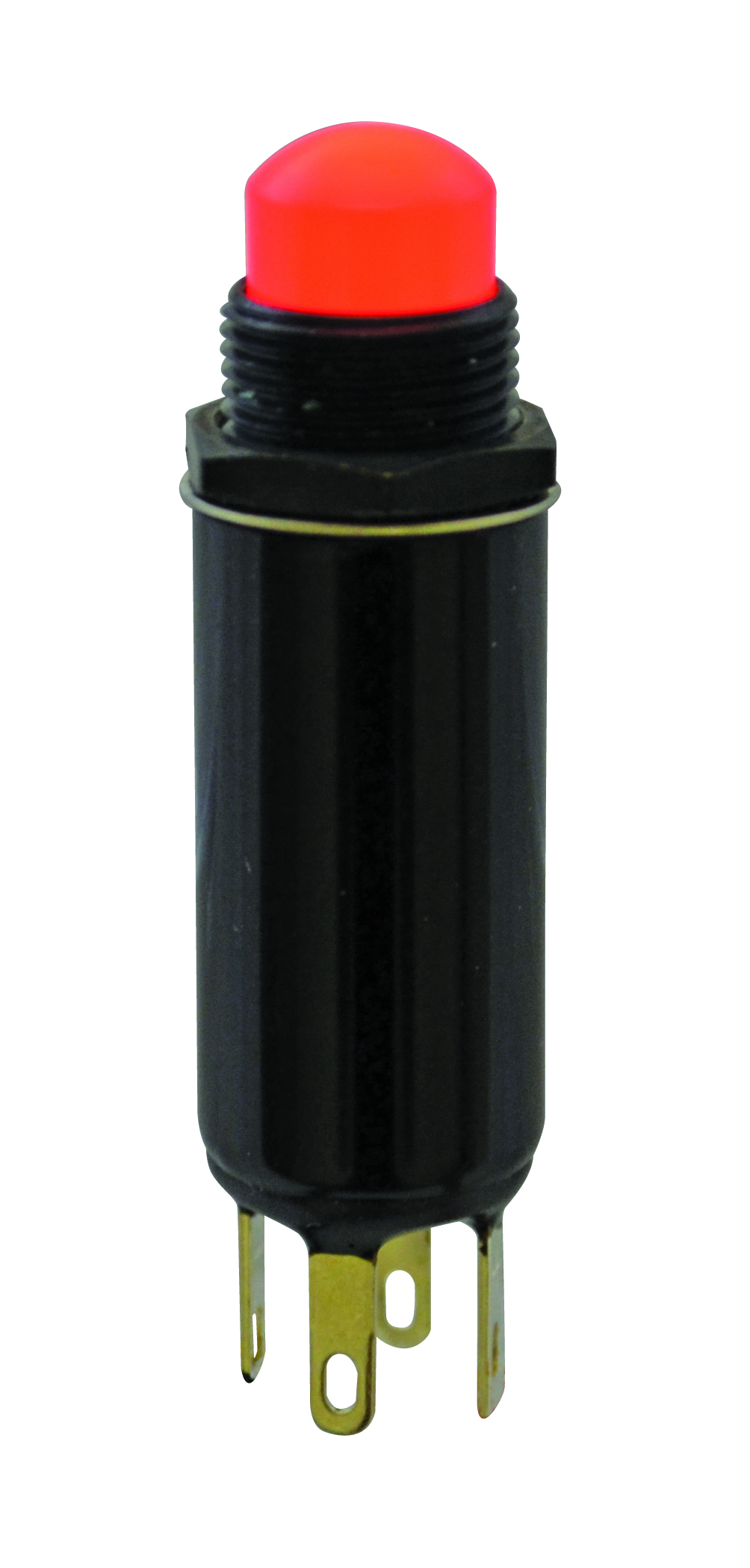

Introducing the LP3 Series Illuminated Momentary Action Pushbutton Switch ( LP3-41A122R) in a sleek Black and Red Translucent design. Featuring a durable Aluminum housing and a Raised Dome Button actuator, this sealed switch ensures reliable performance in various environments. With a 25,000-cycle durability rating and a 5A current rating, it guarantees long-lasting use. The SPST-NO contact configuration and Off-(On) switch function provide efficient control. Illuminated with a vibrant Red light at 2V, this panel-mounted switch is perfect for applications requiring visual feedback. Operating at temperatures ranging from -55°C to 85°C, with voltage ratings of 28VDC and 115VAC, it offers versatility and safety. Upgrade your control systems with this high-quality pushbutton switch.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
