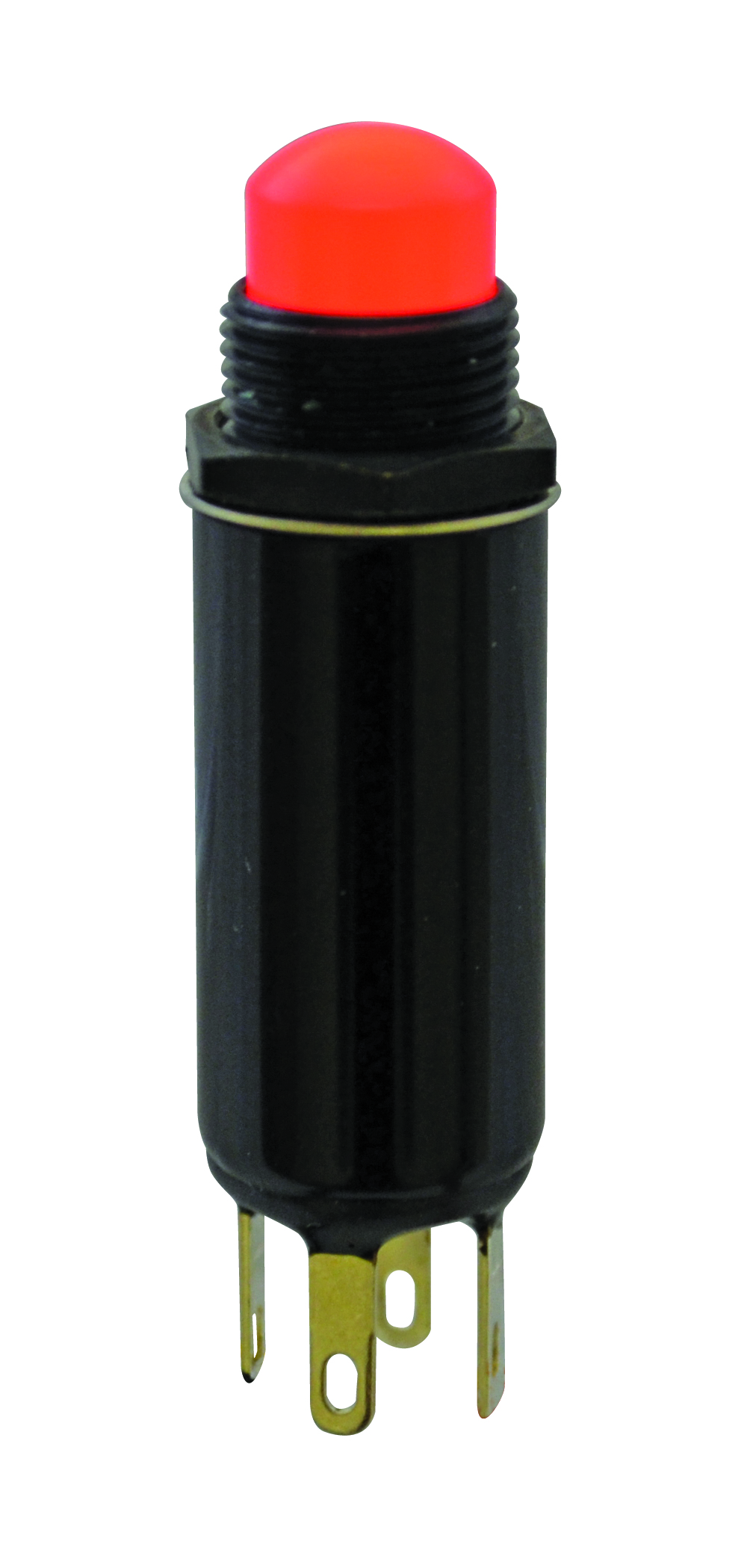

LP3-41E322W

OTTLP3_41E322W
Heilind Number:OTTLP3-41E322W
Manufacturer:OTTO Controls
Manufacturer Number:LP3-41E322W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-41E322W
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:6 V
SKU:OTTLP3-41E322W

Detailed Description

The LP3 Series Push Button Switch, SKU LP3-41E322W, is a versatile and durable component for various applications. Featuring a white translucent cap and green illumination, it offers both visual appeal and functionality. With an IP6K8S rating, it is sealed for protection against dust and water ingress, making it ideal for use in challenging environments. The button actuator, made of thermoplastic, ensures reliable performance with a durability rating of 25,000 cycles. Its momentary action, SPST-NO contact configuration, and 5A current rating cater to efficient and precise switching operations. Panel mount installation and solder termination provide ease of setup. Whether in automotive, industrial, or consumer electronics, this illuminated push button switch guarantees long-lasting performance even in harsh conditions.
