LP3-41J222W

OTTLP3_41J222W
Heilind Number:OTTLP3-41J222W
Manufacturer:OTTO Controls
Manufacturer Number:LP3-41J222W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

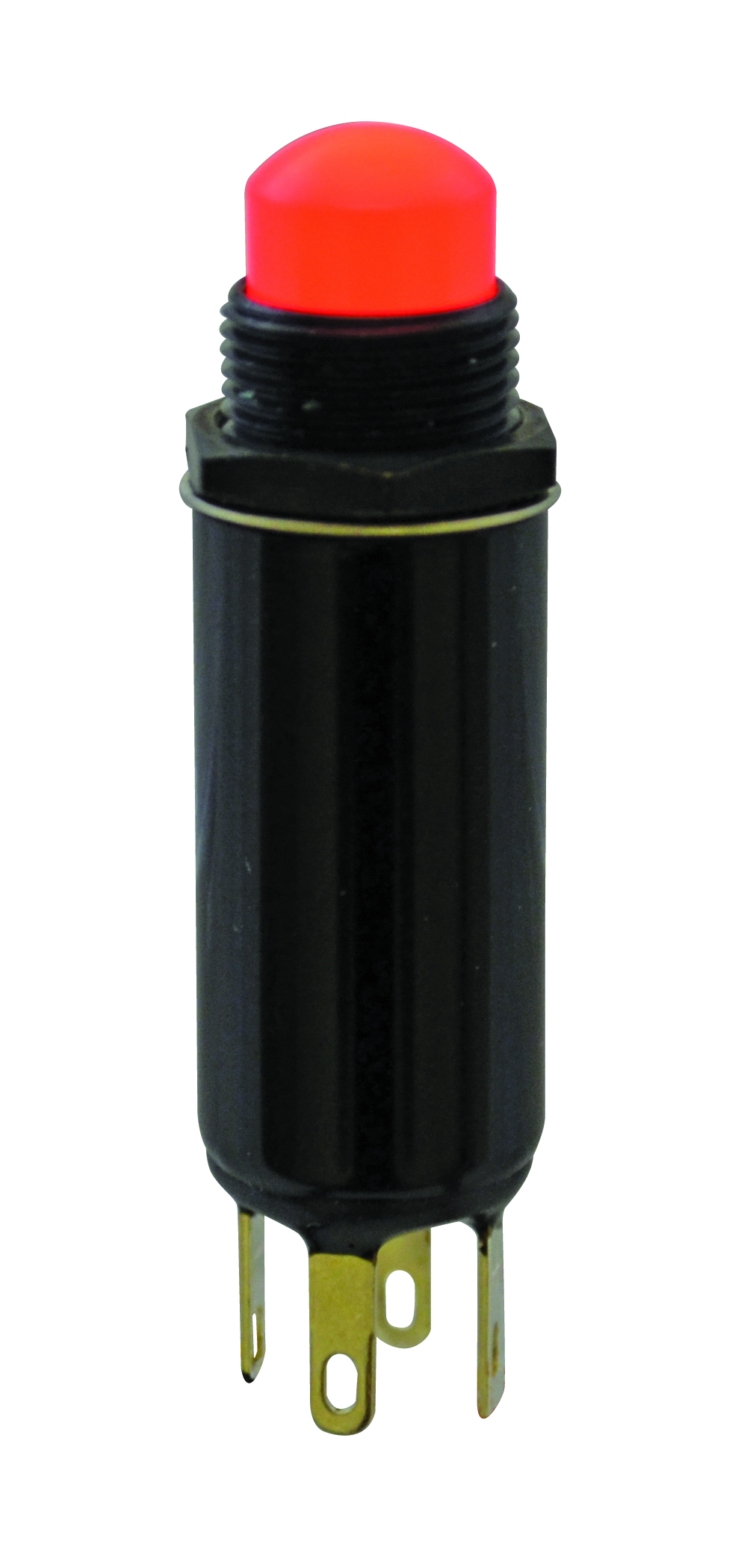

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-41J222W
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP64KS
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
SKU:OTTLP3-41J222W

Detailed Description

Introducing the LP3 Series Illuminated Pushbutton Switch, featuring a sleek design with a White-Translucent cap and Black housing for a modern aesthetic. Engineered for durability with a 25,000 cycle lifespan, this switch is ideal for high-demand environments. The IP64KS rating ensures reliable performance even in harsh conditions, while the Sealed construction offers added protection. With a Raised Dome Button actuator and Round shape, it provides comfortable and precise operation. The Amber illumination, powered by a 12V voltage, adds visibility. Meeting stringent standards, this SPST-NO switch is perfect for applications requiring momentary action. Trust in its quality, with a contact plating of Silver for enhanced conductivity and a current rating of 5A. Whether panel-mounted or used in a solder termination, this switch guarantees smooth operation. Upgrade your control systems with the LP3 Series pushbutton switch.
