LP3-41J322A

OTTLP3_41J322A
Heilind Number:OTTLP3-41J322A
Manufacturer:OTTO Controls
Manufacturer Number:LP3-41J322A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

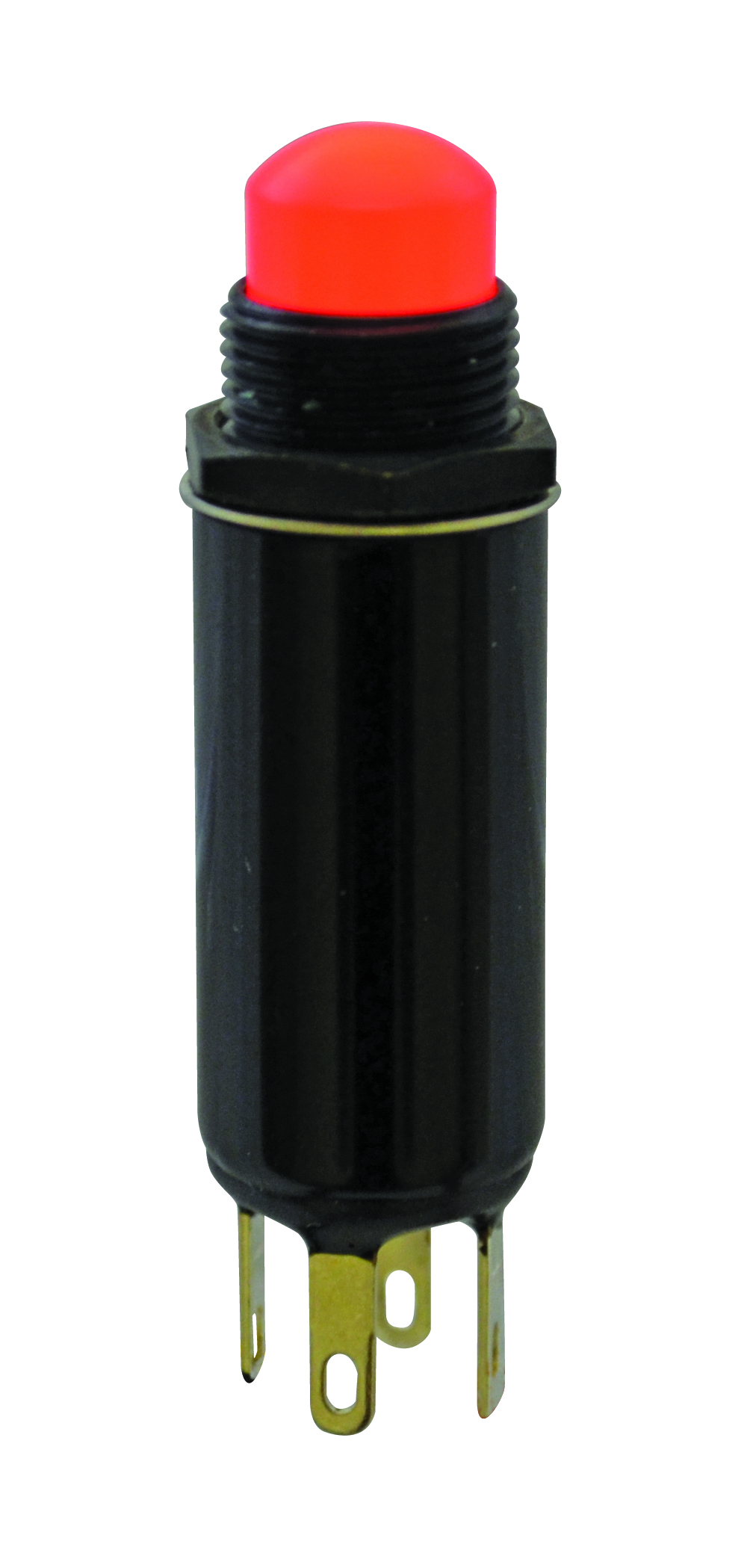

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-41J322A
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Amber - Translucent
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
SKU:OTTLP3-41J322A

Detailed Description

Introducing the LP3 Series Momentary Action Pushbutton Switch, LP3-41J322A, designed for high-performance applications. Featuring RoHS compliance and a durable construction, this switch ensures reliability with a durability rating of 25,000 cycles. The Amber Translucent cap color and Illuminated design make it visually striking, perfect for user-friendly operation. With an IP6K8S rating, it guarantees protection against dust and water ingress. The sleek Black aluminum case and Raised Dome Button actuator provide a professional look and tactile feedback. Suitable for panel mounting, its sealed housing and solder termination offer secure installation. Operating at temperatures ranging from -55°C to 85°C, it is ideal for various environments. The SPST-NO contact configuration and 5A current rating deliver efficient performance. Whether in industrial machinery or consumer electronics, this switch is a reliable choice for control applications.
