LP3-41K322R

OTTLP3_41K322R
Heilind Number:OTTLP3-41K322R
Manufacturer:OTTO Controls
Manufacturer Number:LP3-41K322R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

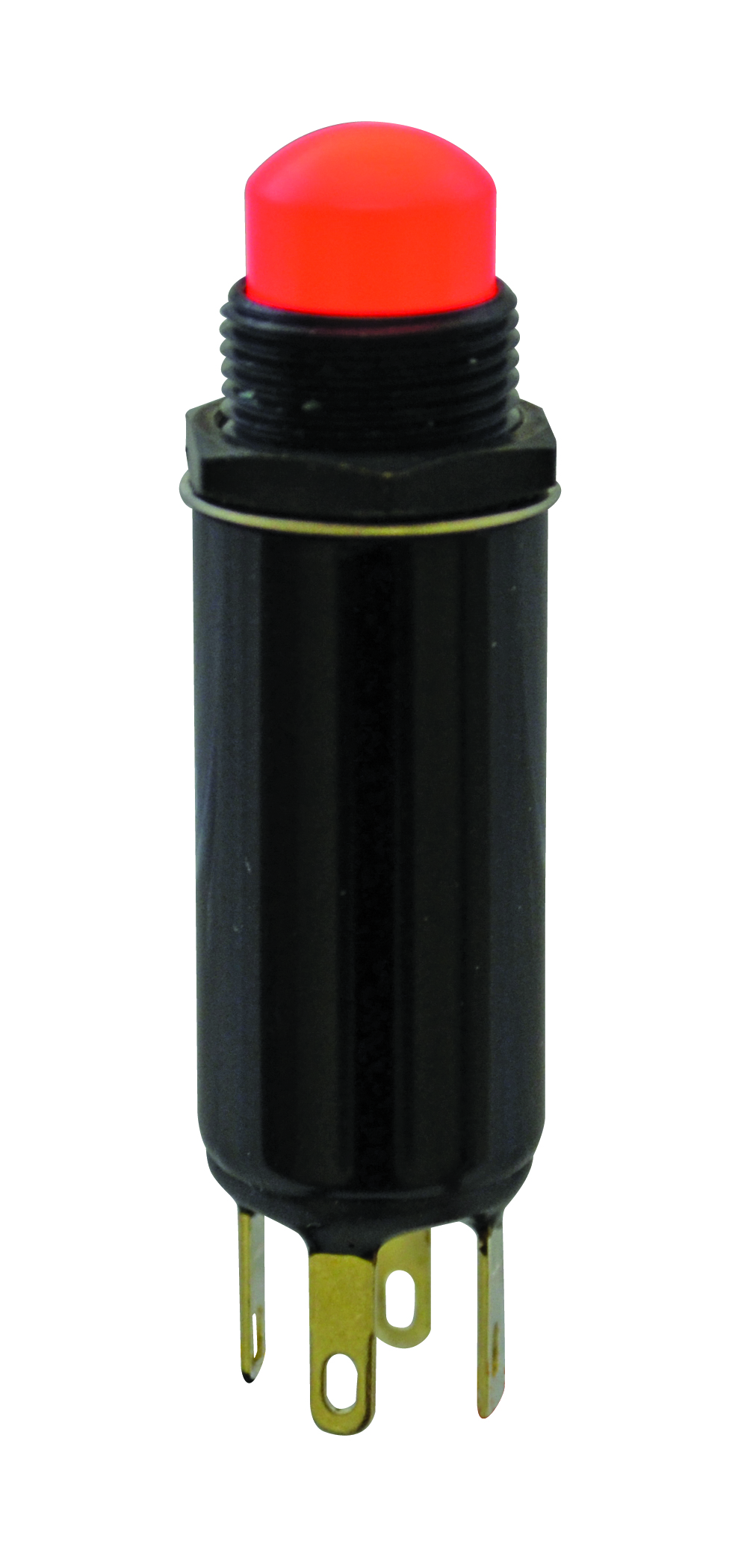

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-41K322R
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP3-41K322R

Detailed Description

Introducing the LP3 Series Illuminated Sealed Pushbutton Switch. Designed for reliability in demanding environments, this switch features a durable aluminum housing with a black finish and a red translucent button, meeting IP6K8S standards for water and dust resistance. The raised dome button offers a responsive touch, while the red LED illumination provides clear visual feedback. With a momentary action and SPST-NO contact configuration, it ensures precise control. Operating at temperatures ranging from -55°C to 85°C and capable of handling up to 5A at 28VDC or 115VAC, this switch is suitable for a wide range of applications. Its solder termination and thermoplastic actuator make installation easy. Trust the LP3-41K322R for high-performance switching in industrial and commercial settings.
