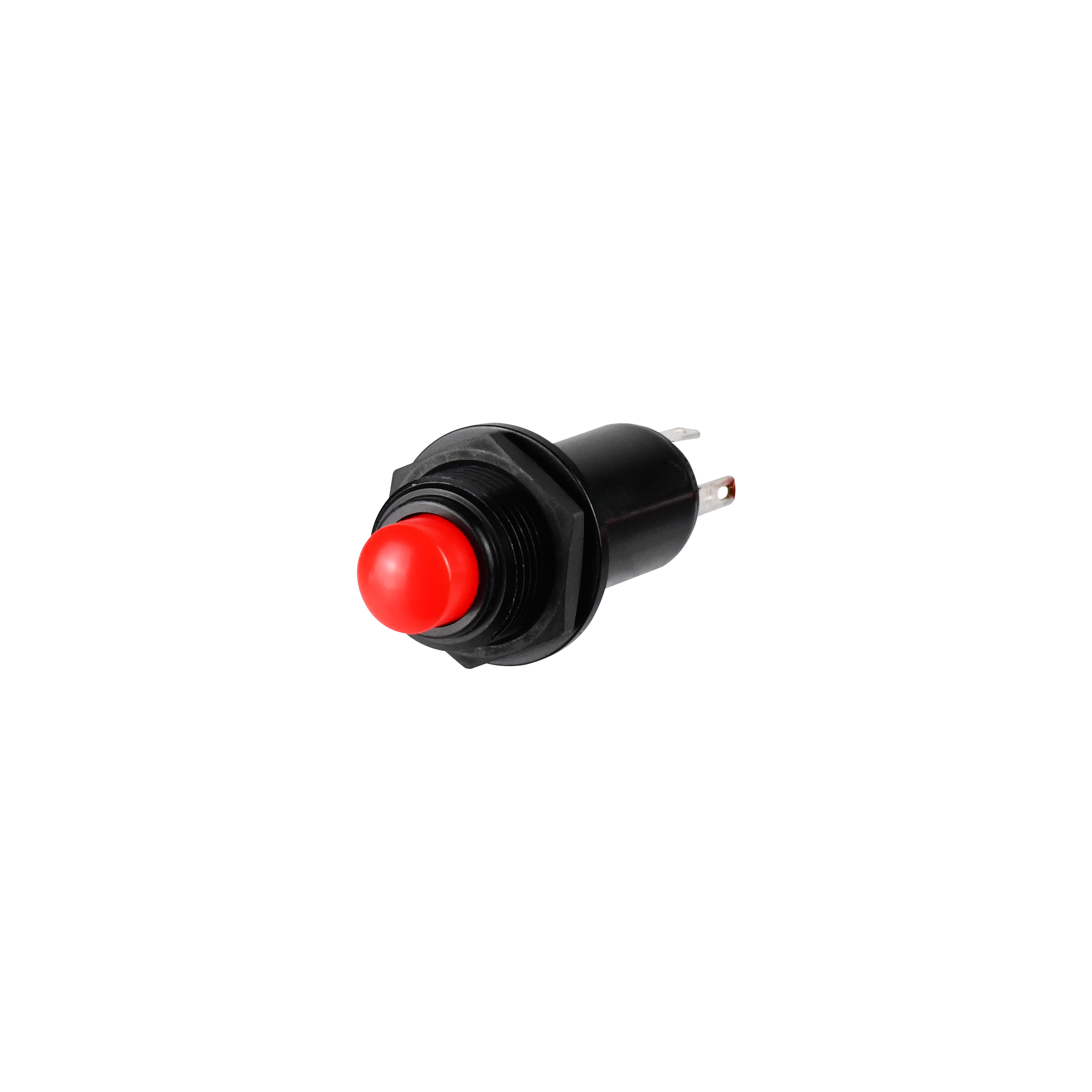

LP3-61K221W

OTTLP3_61K221W
Heilind Number:OTTLP3-61K221W
Manufacturer:OTTO Controls
Manufacturer Number:LP3-61K221W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-61K221W
Series:LP3
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP64KS
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP3-61K221W

Detailed Description

Introducing the LP3 Series Sealed Momentary Action Pushbutton Switch, LP3-61K221W. Designed for reliable performance in demanding environments, this switch features a durable aluminum housing with a sleek silver finish. The translucent white button, illuminated with a vibrant red light, offers enhanced visibility. With an IP64KS rating, it ensures protection against dust and water ingress, making it ideal for industrial applications. The raised dome button, crafted from thermoplastic, provides a comfortable actuation experience. Operating at 115V AC and 28V DC, with a current rating of 5A, this switch guarantees efficient functionality. Its SPST-NO contact configuration, along with silver contact plating, ensures a reliable electrical connection. Tested for durability with a rating of 25,000 cycles, it offers long-lasting performance even in harsh conditions. Suitable for panel mounting and featuring solder termination, installation is simple and secure. From machinery control panels to automotive applications, the LP3 Series switch is the perfect choice for your high-reliability needs.
